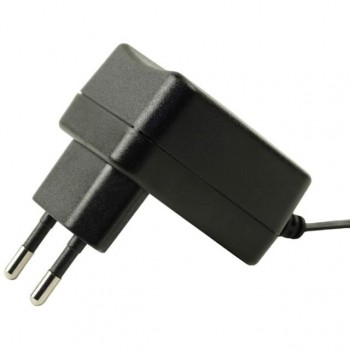

The CUI Inc. SWM12-6-EV-P5 is an AC/DC wall mount adapter with a power rating of 12W and an output voltage of 6V. Designed for reliability and efficiency, it meets Level VI and CoC Tier 2 standards, ensuring minimal no-load power consumption of 100mW (Max).
This adapter is suitable for medical applications and features a fixed blade input type and a CEE 7/16 input connector. The output is delivered via a 2.1mm I.D. x 5.5mm O.D. x 9.5mm barrel plug, connected by a 1.50m (59") cord. Its compact dimensions of 53.5mm x 41.2mm x 28.2mm make it ideal for space-constrained designs.
The SWM12-6-EV-P5 operates within a wide input voltage range of 90 ~ 264 VAC and functions optimally in temperatures from 0°C to 40°C. It is approved by major agencies including CB Scheme, CSA, EN, FCC, IEC, PSE, TUV, and UL, adhering to standards such as C22.2 No. 60601-1 and 60950-1.
This Class II wall mount adapter is designed for the European region and offers positive center polarization. It is RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
90 to 264 VAC.
6V at 2A, with a maximum power of 12W.
Level VI and CoC Tier 2.
0°C to 40°C.
Barrel plug, 2.1mm ID x 5.5mm OD x 9.5mm, with positive center polarity.
Yes, it is designed for medical applications and meets relevant safety standards such as IEC 60601-1.
Wall mount (Class II) with fixed blade input.
