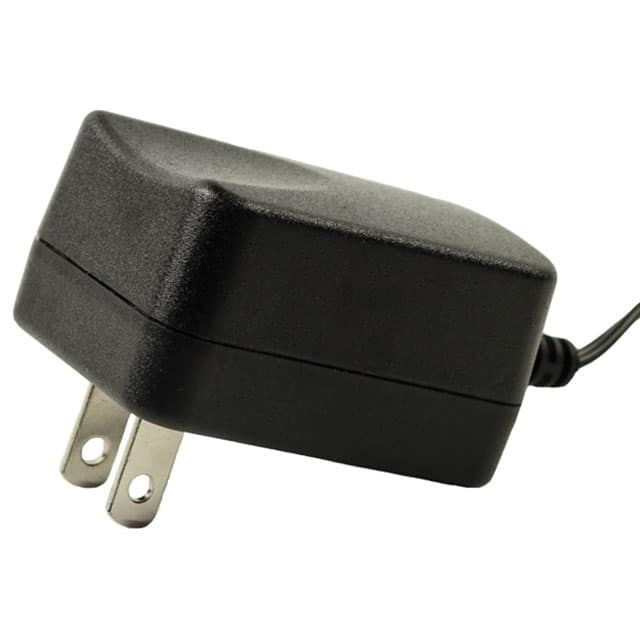

The CUI Inc. SWM12-24-NV-P5 is a versatile AC/DC wall mount adapter designed for various applications, including medical use. It delivers a regulated 24V output with a maximum power of 12W and a current rating of 500mA.
This adapter features a universal input voltage range of 90-264 Vac and operates at standard frequencies of 50-60 Hz. It boasts high efficiency, meeting Level VI standards and CoC Tier 2 requirements, ensuring minimal energy waste. The unit includes essential protections such as over-voltage, over-current, and short-circuit protection with auto-recovery.
Designed for convenience, the SWM12-24-NV-P5 has a compact, wall-mount form factor with a NEMA 1-15P input connector and a standard 2.1mm I.D. x 5.5mm O.D. barrel plug output. Its dimensions are 53.5mm x 41.2mm x 28.2mm, and it comes with a cord length of 1.50m (59 inches). The operating temperature range is 0°C to 40°C.
The output voltage is 24 Vdc.
The maximum output current is 0.5 A.
The power rating is 12 W.
The operating temperature range is 0°C to 40°C.
Yes, it is RoHS3 Compliant.
