| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

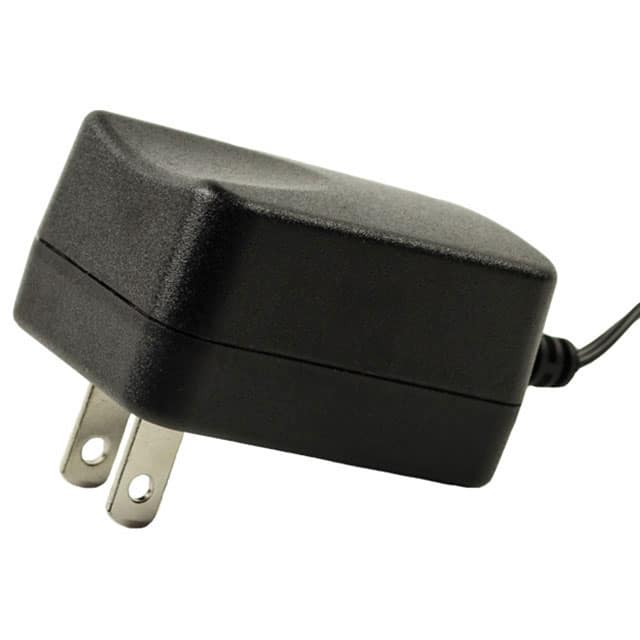

The CUI Inc. SWM12-18-NH-P6 is a versatile AC-DC power supply designed for wall-mount applications. It delivers a regulated 18V output at up to 660mA, providing a total of 12W of power.
This power supply boasts a universal input range of 90-264 Vac and meets Level VI efficiency standards, ensuring energy savings. It is certified to UL 60601 4th edition, making it suitable for medical applications, and is also 2 MOPP compliant.
Key features include over-voltage, over-current, and short-circuit protections for enhanced reliability. The compact design allows for flexible mounting, and it comes with a standard North American NEMA 1-15P input connector and a 2.5mm I.D. x 5.5mm O.D. barrel plug output.
With an operating temperature range of 0°C to 40°C and a MTBF of 100,000 hours, the SWM12-18-NH-P6 is built for dependable performance in various environments.
The output voltage is 18Vdc (maximum).
It is a wall mount adapter (Class II).
The operating temperature range is 0°C to 40°C.
It supports a universal input of 90-264Vac.
Over voltage, over current, and short circuit protection with auto recovery.
Level VI and CoC Tier 2 efficiency.
55.0mm x 25.0mm x 36.7mm.
