| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuation Force | |
| Contact Material | |
| Contact Rating @ Voltage | |
| Contact Resistance | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Panel Thickness | |
| Storage Temperature | |
| Termination Style |

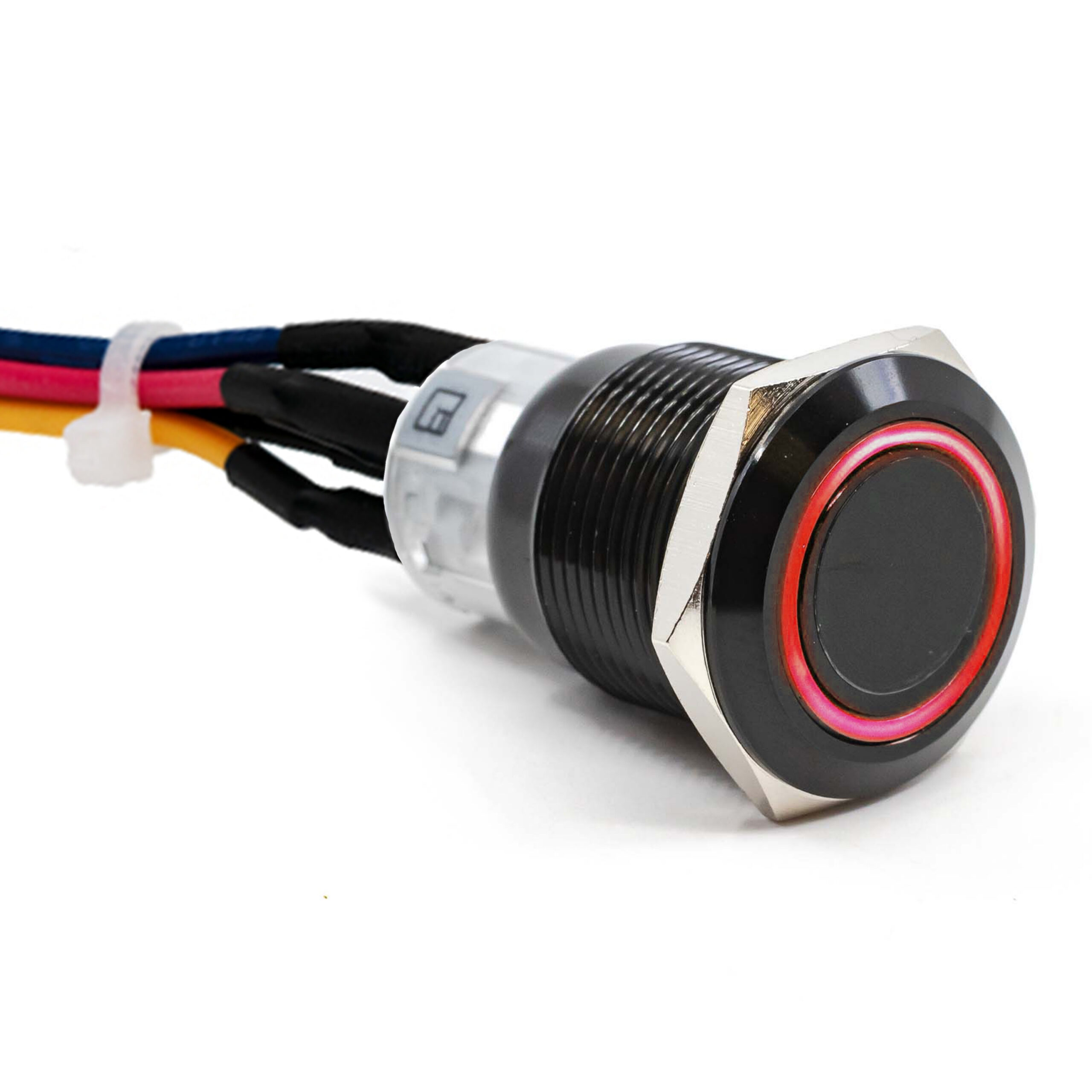

The PV4 Series from MOUNTAIN SWITCH is a robust illuminated anti-vandal switch designed for demanding environments. It features a standard 19mm panel cutout for easy installation and offers both SPDT and DPDT contact arrangements to suit various circuit control needs.
This switch is rated for 2A at 24VDC and boasts an IP67 rating for moisture and dust protection, making it suitable for industrial and outdoor applications. The series supports multiple illumination options including dot, ring, and power symbol illumination with various LED colors and voltages.
Available with solder, screw, or wire lead terminations, the PV4 Series provides flexibility in integration. Its durable construction ensures a mechanical life of 1,000,000 cycles, and it operates reliably within a temperature range of -40°C to +85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.32 | $1.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PV4 Series switch requires a 19mm diameter panel cutout.
The PV4 Series switch is available with SPDT and DPDT contact arrangements.
The PV4 Series switch has a contact rating of 2A at 24VDC.
The PV4 Series switch has an IP67 rating for moisture and dust protection.
The PV4 Series switch operates in a temperature range of -40°C to +85°C.
Available termination styles include solder, screw, wire leads, and wire leads with connectors.
