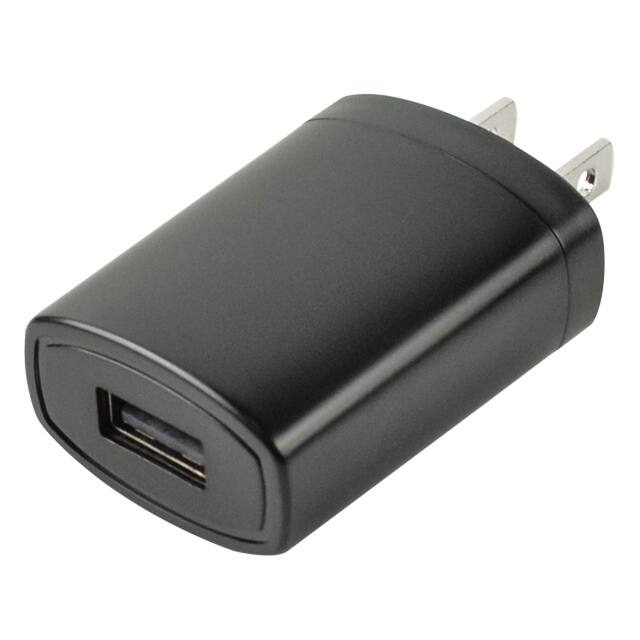

SWI5-5-N-I38 The CUI Inc. SWI5-5-N-I38 is a 5W AC-DC power supply with a 5V output. It features a universal input range and a USB Type A receptacle.
Mfr Part #:

SWI5-5-N-I38

Mfr Name: CUI Inc.
CUI Inc.
The CUI Inc. SWI5-5-N-I38 is a 5W AC-DC power supply with a 5V output. It features a universal input range and a USB Type A receptacle.
Stock on Request

SWI5-5-N-I38 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Dimensions
Efficiency
Form
Frequency
Height
Input Connector
Input Type
Length
No Load Power Consumption
Operating Temperature
Output Connector
Power (Watts)
Region Utilized
Standard Number
Storage Temperature
Voltage
Weight
Width
View Similar Products (0)

SWI5-5-N-I38 Description

Short technical summary and product information.

The CUI Inc. SWI5-5-N-I38 is a compact AC-DC power supply designed for wall mounting. It delivers a single regulated 5 Vdc output at 1A, providing up to 5W of power. This unit is suitable for ITE (Commercial) applications and features a universal input voltage range of 90-264 Vac.



Key features include over-voltage, over-current, and short-circuit protections, ensuring reliable operation. The power supply meets DoE Level VI and CoC Tier 2 efficiency standards, minimizing energy consumption. It is equipped with a USB Type A receptacle for output connectivity and a NEMA 1-15P input connector for North American use.



With safety approvals including UL/cUL, PSE, and compliance with FCC Part 15 Class B for EMI/EMC, the SWI5-5-N-I38 is designed for robust performance. It operates within a temperature range of 0°C to 40°C and has a MTBF of 50,000 hours.

SWI5-5-N-I38 Quick Information

Product Type: AC-DC Power Supply
Series: SWI5-N-USB
Canonical Name: CUI Inc. SWI5-5-N-I38 AC-DC Power Supply
Subcategory: Wall Mount Adapter

SWI5-5-N-I38 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SWI5-5-N-I38 Features

  • Delivers 5W of power at 5V output.
  • Universal input voltage range (90-264 Vac).
  • Features over-voltage, over-current protection.
  • Meets DoE Level VI efficiency standards.
  • Equipped with a USB Type A receptacle.

SWI5-5-N-I38 Applications

  • Powers 5 Vdc USB-powered devices.
  • Suitable for low-power wall-mounted applications.
  • Provides isolated 5 V supply for embedded systems.
  • Used with North American 2-pin wall outlets.

SWI5-5-N-I38 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage and current?

The adapter provides 5 Vdc at 1 A, with 5 W output power.

What input voltage range does it support?

It accepts 90 to 264 Vac at 47 to 63 Hz.

What is the operating temperature range?

The operating temperature range is 0 °C to 40 °C.

What output connector does it use?

It uses a USB A receptacle output connector.

What input plug is included?

It includes a NEMA 1-15P North America 2-pin input plug.

What protection features are built in?

Over voltage protection is set at 10 Vdc and over current protection at 1.5 A.

What efficiency rating does it meet?

It meets Level VI and CoC Tier 2 efficiency requirements.
