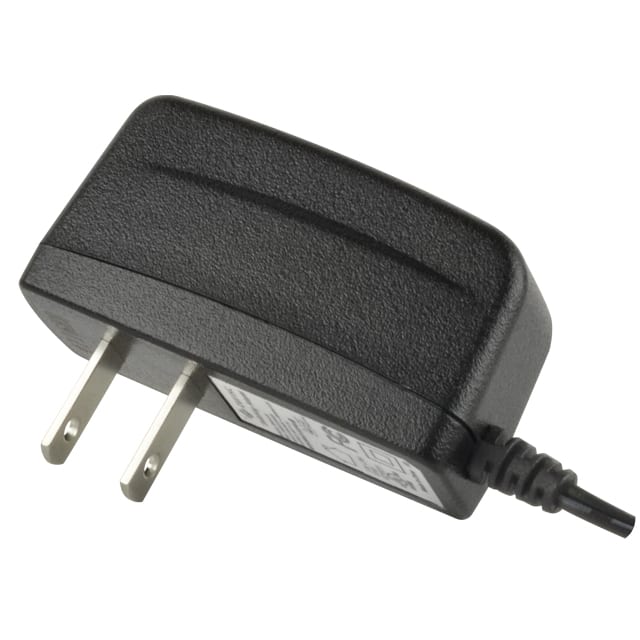

The CUI Inc. SWI5-12-N-P6 is an AC-DC power supply designed for wall mounting applications. It provides a stable 12V DC output with a maximum continuous power of 6W and a maximum output current of 0.5A.
This power supply features a universal input voltage range of 90-264 Vac and operates at standard 50-60 Hz frequencies. It meets DoE Level VI efficiency standards, ensuring energy savings. The unit includes essential protections such as over-voltage protection (OVP), over-current protection (OCP), and short-circuit protection (SCP) for safe operation.
Designed with a compact, ultra-compact case, the SWI5-12-N-P6 is suitable for various ITE (Commercial) applications. It has a NEMA 1-15P input connector and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with a positive center polarization. The power supply is certified to IEC 62368-1 and meets UL/cUL, PSE, and FCC safety approvals.
The SWI5-12-N-P6 provides a 12V DC output with a maximum continuous power of 6W.
The SWI5-12-N-P6 accepts a universal input voltage range of 90-264 Vac.
The SWI5-12-N-P6 meets DoE Level VI efficiency standards.
The SWI5-12-N-P6 includes over-voltage protection, over-current protection, and short-circuit protection.
The operating temperature range for the SWI5-12-N-P6 is 0°C to 40°C.
The SWI5-12-N-P6 uses a NEMA 1-15P input connector.
The dimensions of the SWI5-12-N-P6 are 66.5 x 25.4 x 51.3 mm.
