| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

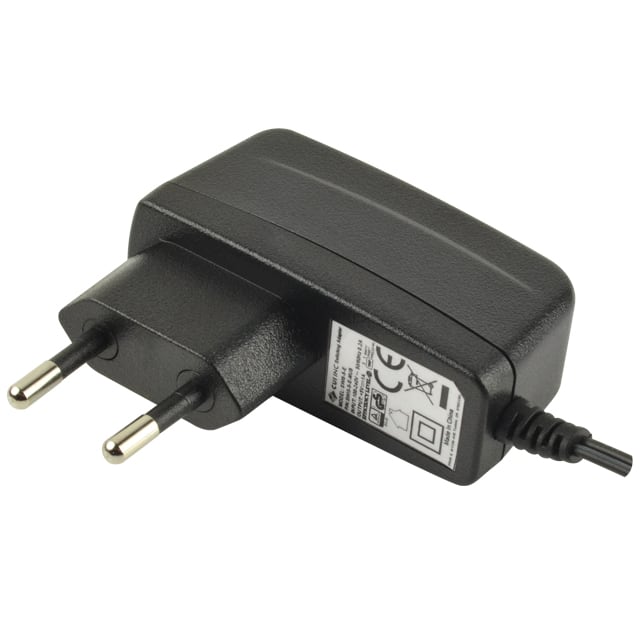

The CUI Inc. SWI5-12-E-MUB is a versatile AC-DC power supply designed for ITE (Commercial) applications. It delivers a stable 12V output at up to 6W of power, with a maximum output current of 500mA.
This power supply operates with a universal input voltage range of 90 to 264 Vac and a frequency range of 47 to 63 Hz. It incorporates essential protections including over-voltage, over-current, and short-circuit protection to ensure safe and reliable operation. The unit boasts an efficiency level of VI and is CoC Tier 2 compliant, with a low no-load power consumption of less than 0.075W.
Designed as a wall-mount Class II device, the SWI5-12-E-MUB features a fixed blade input connector and a USB Micro output connector. Its compact dimensions are 22.6mm x 36.0mm x 65.6mm, making it suitable for space-constrained designs. The operating temperature range is from 0°C to 40°C, and it meets safety standards such as IEC 62368-1.
90 to 264 Vac.
0°C to 40°C.
12 Vdc.
500 mA maximum.
Level VI, CoC Tier 2.
Over voltage, over current, and short circuit protection.
3000 Vac.
