| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

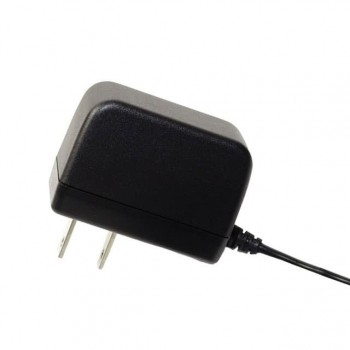

The CUI Inc. SWI3-5-N-ST is an AC/DC wall mount adapter with a power output of 3 Watts and a fixed output voltage of 5V. It is designed for commercial ITE applications and features a North America region utilization.
This adapter operates within an input voltage range of 90 to 264 VAC and boasts a Level VI efficiency rating, with a maximum no-load power consumption of 75mW. The output current is rated at 600mA. The unit connects via a NEMA 1-15P input and utilizes stripped, tinned wire leads for the output.
Mechanical specifications include dimensions of 2.13" L x 1.16" W x 2.17" H (54.0mm x 29.5mm x 55.1mm) and a cord length of 59 inches (1.50m). The operating temperature range is from 0°C to 40°C. The adapter complies with standards such as C22.2 No. 60950-1, 60950-1, and 62368-1, and is approved by CSA, FCC, PSE, and UL.
It is classified as a Class II, Wall Mount form factor. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited. REACH status is listed as REACH Unaffected.
The SWI3-5-N-ST adapter has an output voltage of 5V and a maximum output current of 600mA.
The SWI3-5-N-ST adapter has a power rating of 3 Watts.
The adapter accepts an input voltage range of 90 to 264 VAC.
The SWI3-5-N-ST adapter meets Level VI efficiency standards.
The operating temperature range for the SWI3-5-N-ST is 0°C to 40°C.
The SWI3-5-N-ST uses stripped, tinned wire leads for its output connector.
The dimensions of the SWI3-5-N-ST adapter are 2.13" L x 1.16" W x 2.17" H (54.0mm x 29.5mm x 55.1mm).
