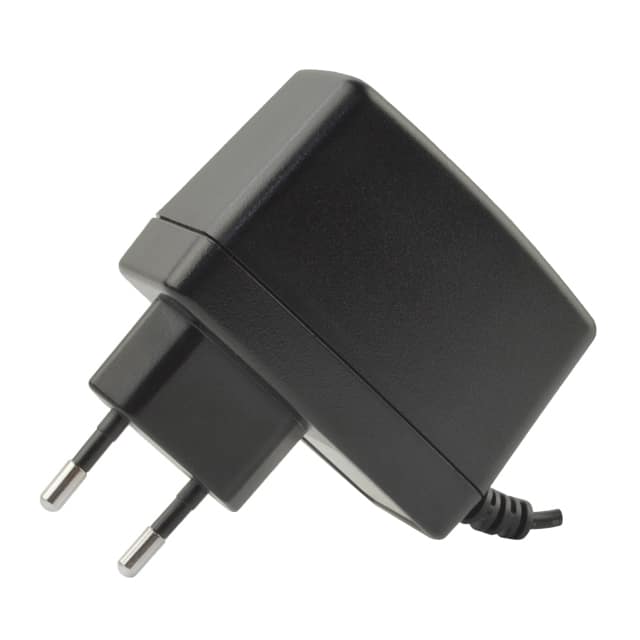

SWI25-24-E-P5 The CUI Inc. SWI25-24-E-P5 is a 25W AC/DC wall mount power adapter with a 24V output. It offers universal input voltage and meets DoE Level VI and CoC Tier 2 efficiency standards.
Mfr Part #:

SWI25-24-E-P5

Mfr Name: CUI Inc.
CUI Inc.
The CUI Inc. SWI25-24-E-P5 is a 25W AC/DC wall mount power adapter with a 24V output. It offers universal input voltage and meets DoE Level VI and CoC Tier 2 efficiency standards.
Stock on Request

SWI25-24-E-P5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Frequency
Height
Input Connector
Input Type
Length
No Load Power Consumption
Operating Temperature
Output Connector
Output Power
Polarization
Power (Watts)
Region Utilized
Standard Number
Voltage
Width
View Similar Products (0)

SWI25-24-E-P5 Description

Short technical summary and product information.

The CUI Inc. SWI25-24-E-P5 is an AC/DC power supply designed for wall-mount applications. It provides a continuous output power of up to 25.2W with a nominal output voltage of 24V and a maximum output current of 1.05A.



This power supply features a universal input voltage range of 90-264 Vac and operates within a frequency range of 47-63 Hz. It is compliant with DoE Level VI and CoC Tier 2 efficiency standards, ensuring low no-load power consumption of less than 0.075W. The unit includes over-voltage, over-current, and short-circuit protections for enhanced safety.



Designed with an ultra-compact case, the SWI25-24-E-P5 has dimensions of 71.0mm x 33.0mm x 48.4mm. It features a CEE 7/16 input connector and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm). The power supply is certified to IEC 62368 standards and carries CE and GS safety approvals, operating within a temperature range of -20°C to 40°C.

SWI25-24-E-P5 Quick Information

Product Type: AC/DC Power Supply
Series: SWI25-E
Canonical Name: CUI Inc. SWI25-E Series AC-DC Power Supply
Subcategory: Wall Adapter

SWI25-24-E-P5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SWI25-24-E-P5 Features

  • Up to 25.2 W continuous power output.
  • DoE Level VI and CoC Tier 2 compliant efficiency.
  • Universal input voltage range (90-264 Vac).
  • Over voltage, over current, and short circuit protections.
  • Ultra-compact wall mount case design.

SWI25-24-E-P5 Applications

  • Powers commercial information technology equipment.
  • Suitable for office automation and peripherals.
  • Ideal for networking and telecommunications devices.
  • Used in light industrial control systems.

SWI25-24-E-P5 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range?

90-264 Vac.

What is the output voltage and current?

24 Vdc at 1.05 A.

What is the efficiency rating?

Level VI, CoC Tier 2, average efficiency 86.3%.

What are the safety approvals?

TUV-GS (Germany) and CE (EU), certified to EN 62368-1.

What is the operating temperature range?

-20°C to 40°C.

What type of output connector does it have?

Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm, center positive.

What protections are included?

Over voltage (28.8V min), over current (140-170%), and short circuit (hiccup mode, auto recovery).
