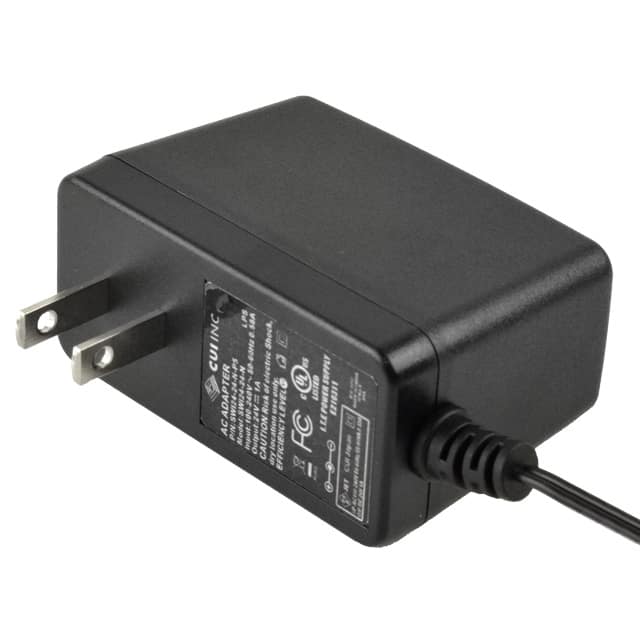

The CUI Inc. SWI24-24-N-P5R is a versatile AC-DC power supply designed for wall-mount applications. It delivers a continuous 24W of power with a 24VDC output at 1A.
This power supply meets DOE Level VI, CEC, and ErP Stage 2 efficiency standards, ensuring minimal energy consumption. It features a universal input voltage range (90-264 Vac) and a frequency range of 47-63 Hz. The unit includes over-voltage, over-current, and short-circuit protections for enhanced reliability.
Designed for ITE (Commercial) applications, the SWI24-24-N-P5R comes with a NEMA 1-15P input connector and a barrel plug R/A output connector (2.1mm I.D. x 5.5mm O.D.). It operates within a temperature range of 0°C to 40°C and has a compact form factor with dimensions of 72 x 34 x 52 mm.
Safety approvals include CB Scheme, CCC, CSA, FCC, IEC, PSE, and UL, certified to 60950-1 and 62368-1 standards. The power supply also boasts a low no-load power consumption of less than 0.1W and an MTBF of 300,000 hours.
90-264 Vac nominal.
0°C to40°C.
24W maximum.
Yes, it complies with Level VI efficiency.
Over voltage protection at 45V, over current protection at 2.5A, and short circuit protection with auto recovery.
72 x34 x52 mm (2.83 x1.34 x2.05 inches).
CB Scheme, CCC, CSA, FCC, IEC, PSE, UL.
