| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Lead Style | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Weight | |
| Width |

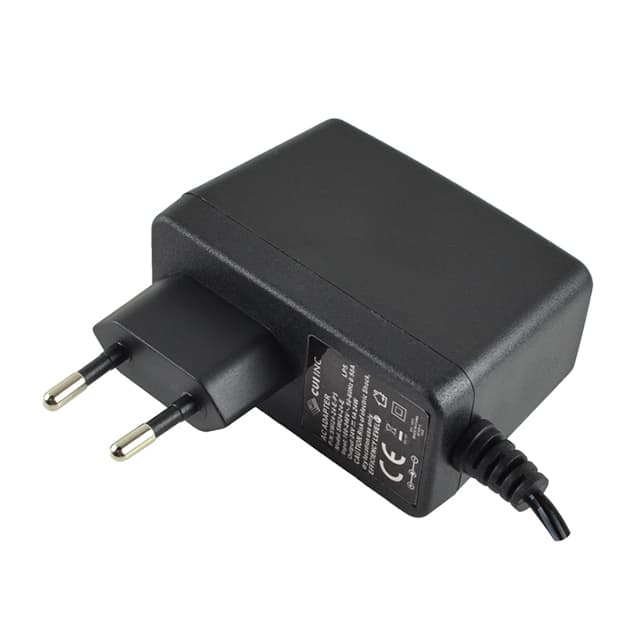

The CUI Inc. SWI24-12-E-P5 is a compact AC-DC power supply designed for ITE (Commercial) applications. It delivers a continuous 24W of power with a 12Vdc output at 2A.
This power supply features a universal input voltage range of 90-264 Vac and meets DoE Level VI and CoC Tier 2 efficiency standards, with a typical no-load power consumption below 0.075W. It includes essential protections such as over-voltage, over-current, and short-circuit protection.
The unit is certified to EN 62368 standards and carries CE safety approvals. It has an input connector for Europe and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D.). The dimensions are 72 x 34 x 88.5 mm, and it weighs 170g.
The SWI24-12-E-P5 has a nominal output voltage of 12 Vdc and a maximum output current of 2.0 A.
The maximum power output for the SWI24-12-E-P5 is 24 W.
The input voltage range is 90 to 264 Vac.
Yes, it meets DoE Level VI and CoC Tier 2 efficiency standards.
It includes over voltage protection, over current protection, and short circuit protection.
The operating temperature range is 0°C to 40°C.
The output connector is a Barrel Plug with 2.1mm I.D. x 5.5mm O.D. x 9.5mm dimensions.
