| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Width |

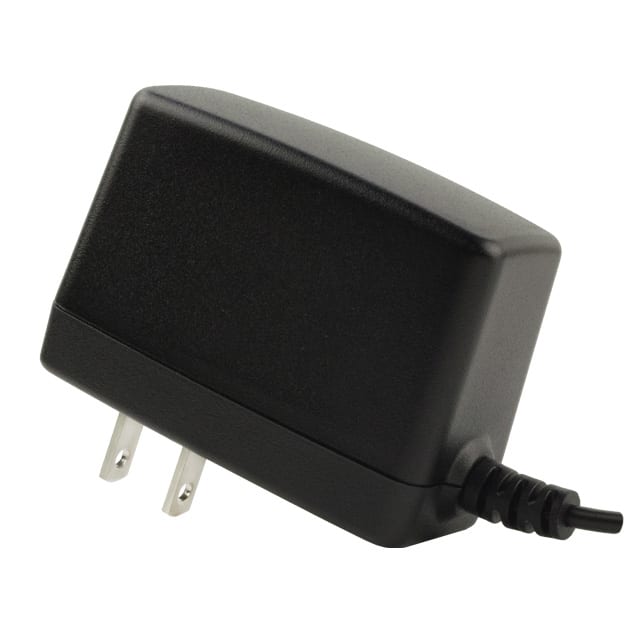

The CUI Inc. SWI15-24-N-P5 is a compact AC-DC power supply designed for wall mount applications. It delivers a continuous 15W of power with a 24VDC output voltage and a maximum output current of 0.63A.
This power supply operates with a universal input voltage range of 100-240 VAC and 47-63 Hz frequency. It boasts DoE Level VI efficiency compliance and features protections for over voltage, over current, and short circuit.
Designed with Class II construction, the SWI15-24-N-P5 offers safety approvals including UL/cUL and PSE, and is certified to IEC 62368 standards. Its mechanical dimensions are 71.0mm x 33.0mm x 48.4mm, with a fixed blade input connector (NEMA 1-15P) and a standard barrel plug output.
Key features include a no-load power consumption of less than 0.075W, a wide operating temperature range of -20°C to 40°C, and a cord length of 1.80m.
The input voltage range is 100-240 Vac at 47-63 Hz.
The output is 24 Vdc at 0.63 A (15 W).
The operating temperature range is -20°C to 40°C.
Dimensions are 71.0 mm x 33.0 mm x 48.4 mm. The output connector is a barrel plug with 2.1 mm I.D. x 5.5 mm O.D., positive center polarity.
It has UL/cUL (62368-1), PSE (Japan), and FCC Part 15 Class B approvals.
It meets Level VI efficiency and CoC Tier 2.
Over voltage protection (28.4 Vdc, hiccup mode, auto recovery), over current protection (140%, hiccup mode, auto recovery), and continuous short circuit protection (hiccup mode, auto recovery).
