| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Power | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

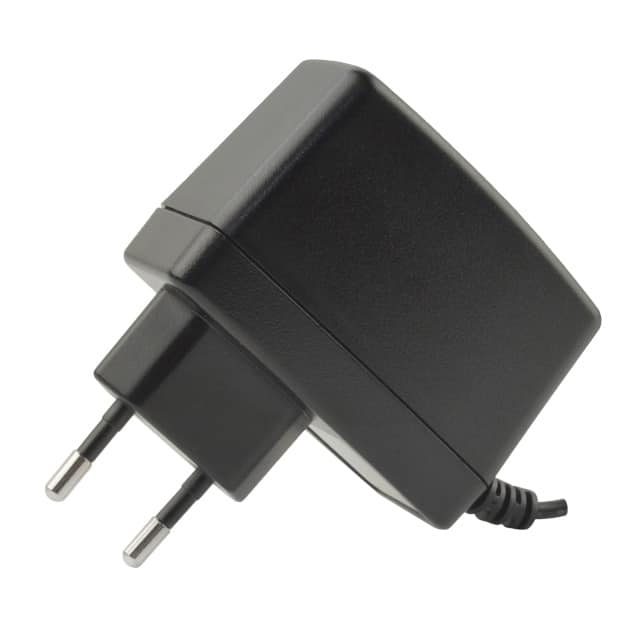

The CUI Inc. SWI15-24-E-P5 is a versatile AC-DC power supply designed for various applications. It delivers a continuous 15W of power with a stable 24V output voltage. The unit operates across a universal input voltage range of 90-264 Vac and features an input frequency range of 47-63 Hz, making it suitable for global use.
This power supply boasts an efficiency rating of Level VI and CoC Tier 2 compliant, ensuring energy efficiency with a no-load power consumption of less than 0.075W. It is equipped with over-voltage, over-current, and short-circuit protections for enhanced safety and reliability. The compact, wall-mount (Class II) design with a CEE 7/16 input connector and a 2.1mm I.D. x 5.5mm O.D. x 9.5mm barrel plug output connector makes it easy to integrate into various systems.
Key electrical specifications include a maximum output current of 0.63A and a typical efficiency of 84.1%. The operating temperature range is -20°C to 40°C. Safety approvals include EN, FCC, SIQ, and TUV, and it meets standards such as IEC 62368-1.
The nominal output voltage is 24 Vdc.
The maximum output current is 0.63A.
The power rating is 15W.
The input voltage range is 90 to 264 Vac.
The operating temperature range is -20°C to 40°C.
It is certified to IEC 62368-1 and meets standards including EN55011 Class B, 60950-1, 61000-3-2, 61000-3-3, and 61000-6-1.
It features a Barrel Plug with a 2.1mm I.D. x 5.5mm O.D. x 9.5mm size.
