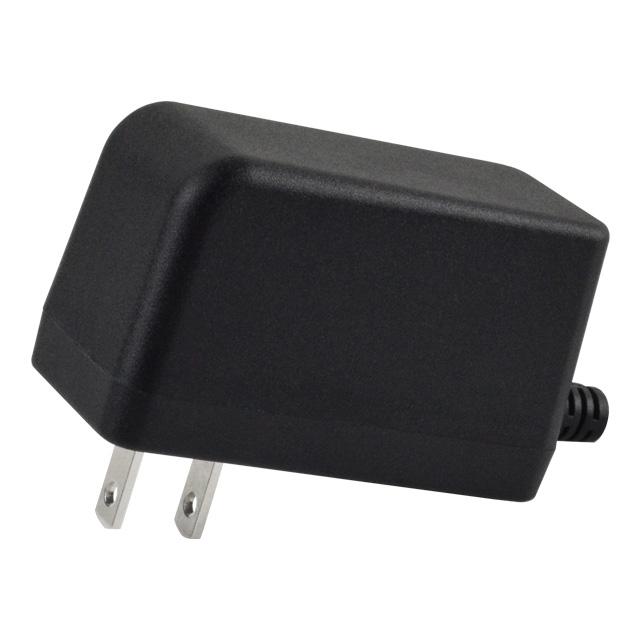

The CUI Inc. SWI12-12-N-N5 is an AC/DC external wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 12V output with a maximum current of 1A, providing a total power of 12W.
This adapter meets Efficiency Level VI standards and operates within a wide input voltage range of 90 to 264 VAC. It features a fixed blade input type with a NEMA 1-15P connector and a barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm). The adapter is designed as a Class II wall mount unit.
Key specifications include a low no-load power consumption of 75mW (Max) and an operating temperature range of 0°C to 40°C. Its dimensions are 72.0mm x 34.0mm x 42.0mm, and it weighs 126.1g. The cord length is 1.50m (59").
Compliance includes RoHS3, and it is approved by agencies such as CB Scheme, CSA, FCC, IEC, PSE, and UL. The standard number is C22.2 No. 60950-1; 60950-1; 62368-1.
The SWI12-12-N-N5 adapter has an output voltage of 12V and a maximum output current of 1A.
The SWI12-12-N-N5 adapter has a power rating of 12W.
The input voltage range for the SWI12-12-N-N5 adapter is 90 to 264 VAC.
The SWI12-12-N-N5 adapter meets Efficiency Level VI.
The SWI12-12-N-N5 adapter operates between 0°C and 40°C.
The SWI12-12-N-N5 adapter is RoHS3 Compliant.
