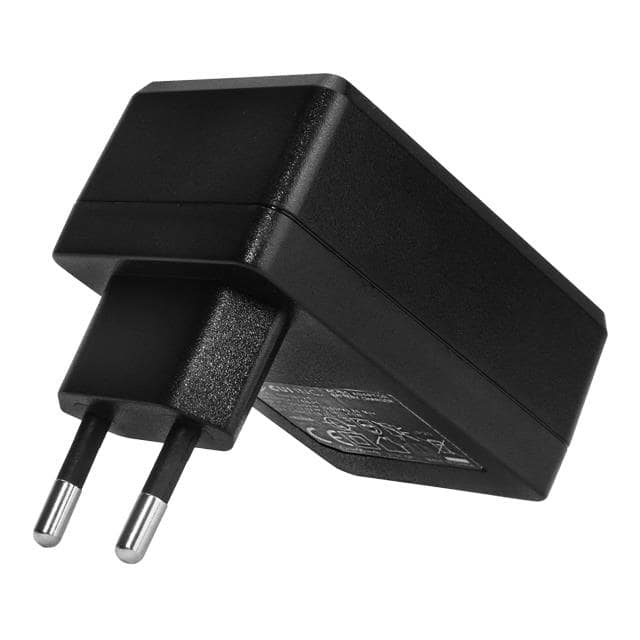

The CUI Inc. SWH24-36-EW-ST is an AC-DC power supply with a nominal output voltage of 36V and a maximum output current of 650mA, delivering up to 23.4W of power. It operates with a universal input voltage range of 90-264 Vac and a frequency range of 47-63 Hz, making it suitable for global applications.
This power supply is designed for household appliance and ITE (Commercial) applications, complying with UL 61558 and IEC 61558 standards. It features over-current and short-circuit protections with auto-recovery. The unit has a line regulation of ±1% and a load regulation of ±5%, with a start-up time of 3 seconds.
Mechanically, the SWH24-36-EW-ST is a wall mount adapter (Class II) with dimensions of 69.5mm x 44.4mm x 48.3mm. It utilizes a KSC 8305 input connector and stripped, tinned wire leads for output. The operating temperature range is 0°C to 40°C, and it has a low no-load power consumption of 100mW.
90 to 264 Vac.
36 Vdc at 650mA.
23.4 W.
86.11%.
0°C to 40°C.
3,000 Vac.
69.5mm x 44.4mm x 48.3mm.
