| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Storage Temperature | |
| Voltage | |
| Width |

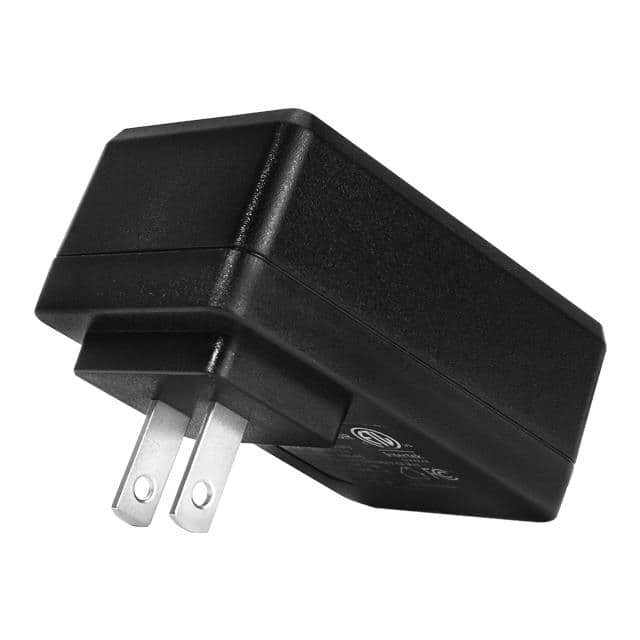

The CUI Inc. SWH24-24-NB-P5 is a versatile AC-DC power supply designed for various applications. It operates with a universal input voltage range of 90-264 Vac and a frequency of 47-63 Hz, making it suitable for global use.
This power supply delivers a stable 24Vdc output at a maximum current of 1.0A, providing up to 24W of power. It boasts high efficiency, reaching 86.2% on average, and a low no-load power consumption of just 0.1W (100mW). Key electrical protections include over-current and short-circuit protection with auto-recovery features.
The SWH24-24-NB-P5 is housed in a compact wall mount (Class II) form factor with dimensions of 69.5mm x 44.4mm x 35.8mm. It features a NEMA 1-15P input connector and a standard 2.1mm I.D. x 5.5mm O.D. x 9.5mm barrel plug output connector. The cord length is 72 inches (1.83m) with a positive center polarization.
Designed for ITE (Commercial) applications, this power supply is certified to UL 1310 and meets FCC Part 15B Class B standards for EMI/EMC. It operates within a temperature range of 0°C to 40°C and has an MTBF of 50,000 hours.
90 to 264 Vac.
24 Vdc at 1.0 A maximum.
0°C to 40°C.
Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm, positive center.
Over current protection (auto recovery, hiccup) and short circuit protection (auto recovery).
3000 Vac input to output.
Wall mount (Class II) with fixed blade input.
