| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

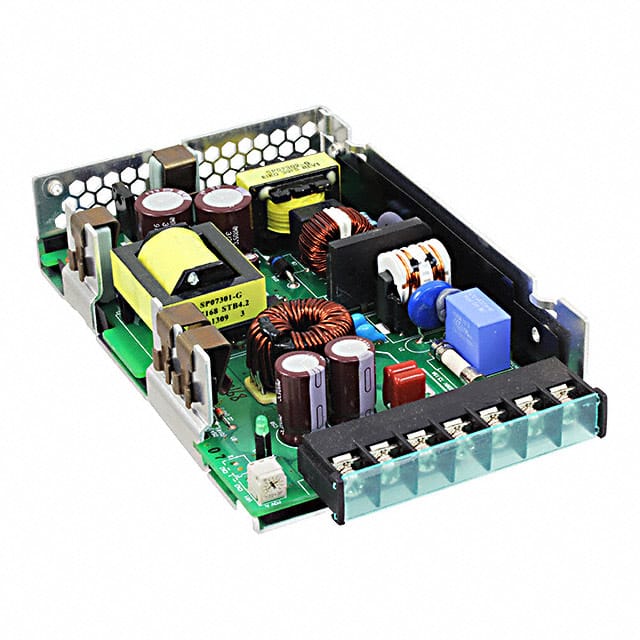

The Sanken SWG100-05 is a 100W AC/DC converter designed for ITE (Commercial) applications. It features an open frame construction and chassis mount type, making it suitable for integration into various systems.
Key electrical specifications include a 20A current output and a voltage rating of 3 kV. The converter operates efficiently with an 84% efficiency rating. It supports universal input and is also DC input capable, providing flexibility in power source selection.
Mechanical dimensions are 147.0mm in length, 32.0mm in width, and 93.0mm in height. The operating temperature range is -10°C to 71°C, with derating applied. The unit has a single output and is approved by cURus.
Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status. This converter is a reliable choice for power supply needs in commercial electronic equipment.
-10°C to 71°C with derating.
100W.
20 A.
84%.
3 kV.
Chassis Mount.
1.
