| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Duration | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |

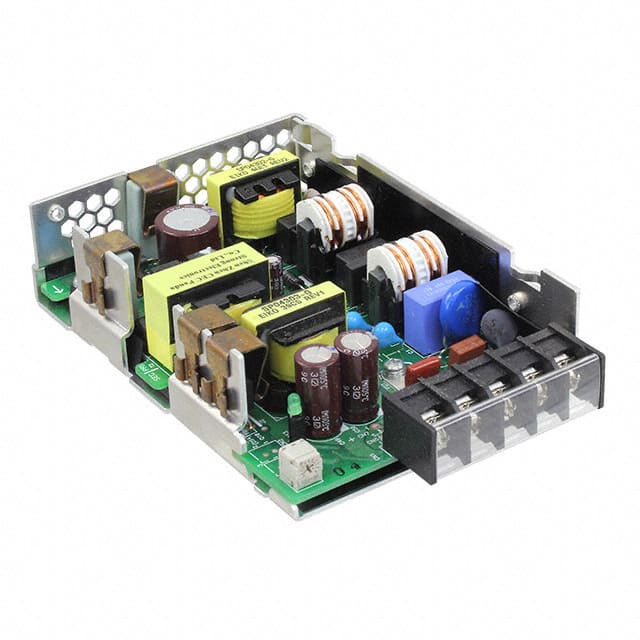

The Sanken SWG050-24 is an AC/DC converter designed for reliable power conversion in commercial applications. This unit delivers 50W of power with a stable 24V output voltage and accepts a wide input voltage range of 85 to 264 VAC, making it suitable for global use.
Key electrical specifications include an efficiency of 84% and an isolation voltage of 3 kV. The converter is designed for ease of integration, featuring a chassis mount type and dimensions of 122.5mm x 82.5mm x 34.5mm. It operates within a temperature range of -10°C to 71°C with derating.
This model is part of the SWG050 series and is approved by CE, cURus, and DEMKO, ensuring compliance with various industry standards. Its features include DC input capability and PFC, making it a versatile component for various ITE (Information Technology Equipment) commercial applications.
The output voltage is 24V.
The input voltage range is 85 to 264 VAC.
The maximum output current is 2.2A.
The power rating is 50W.
The operating temperature range is -10°C to 71°C (With Derating).
It is designed for chassis mounting.
It is approved by CE, cURus, and DEMKO.
