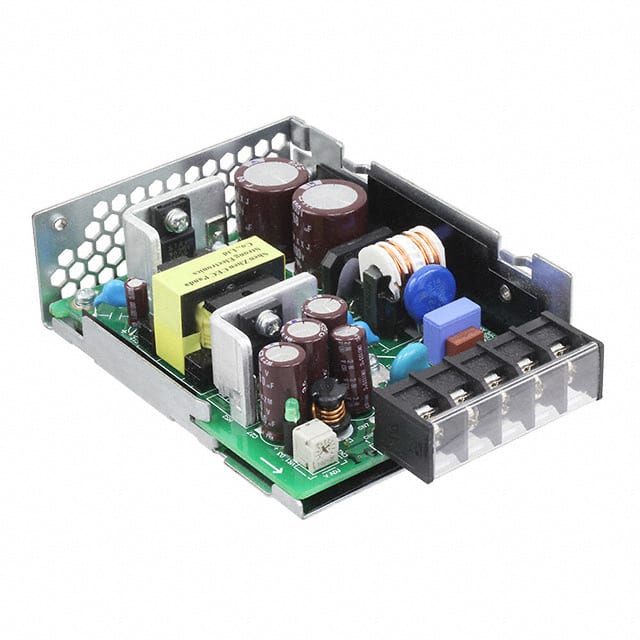

This Sanken SWG030-12 is an open frame AC/DC converter with a power rating of 30W. It is designed for chassis mounting and features a universal input capability, along with DC input capability.
The converter operates with an efficiency of 78% and provides a single output. Its dimensions are 103.0mm in length, 31.0mm in width, and 78.0mm in height. The operating temperature range is -10°C to 71°C with derating.
Key specifications include a voltage rating of 3 kV and a current rating of 2.5 A. The unit is approved by cURus and is suitable for ITE (Commercial) applications.
Compliance information indicates RoHS3 compliance and an MSL of 1. The REACH status is unaffected.
The SWG030-12 provides a single output of 12V at 2.5A.
The SWG030-12 is rated for 30W output power.
The operating temperature range is -10°C to 71°C with derating.
The efficiency is 78%.
The SWG030-12 is cURus approved.
The SWG030-12 is chassis mount.
