SWF150P-24-L
Sanken

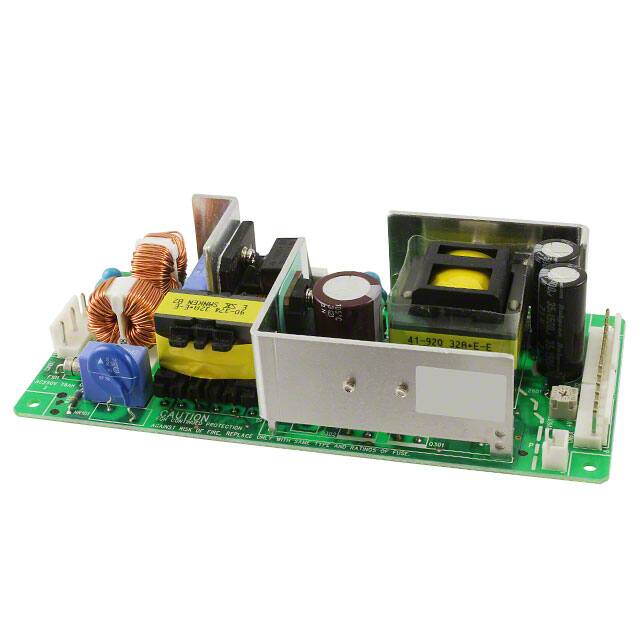

The Sanken SWF150P-24-L is a 150W AC/DC converter with an open frame design and chassis mount. It provides a 24V output and features adjustable output and universal input.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |
This Sanken SWF150P-24 is an AC/DC converter with a power rating of 150W and an output voltage of 24V. It is designed as an Open Frame unit and utilizes a Chassis Mount for installation.
Key electrical specifications include an efficiency of 91% and a current rating of 6.3A. The converter supports adjustable output and universal input, making it versatile for various power supply needs. It operates within a temperature range of -10°C to 70°C.
Mechanical dimensions are 160.0mm in length, 75.0mm in width, and 37.0mm in height. The unit is approved by CE and cURus agencies, indicating compliance with safety standards. It features a single output and provides 3 kV of isolation voltage.
This converter is suitable for ITE (Commercial) applications and offers features like adjustable output and universal input. Its robust design and compliance certifications make it a reliable choice for power conversion needs.
The SWF150P-24 provides 150W of power.
The output voltage is 24V.
It uses Chassis Mount.
The operating temperature range is -10°C to 70°C.
The dimensions are 160.0mm x 75.0mm x 37.0mm.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
