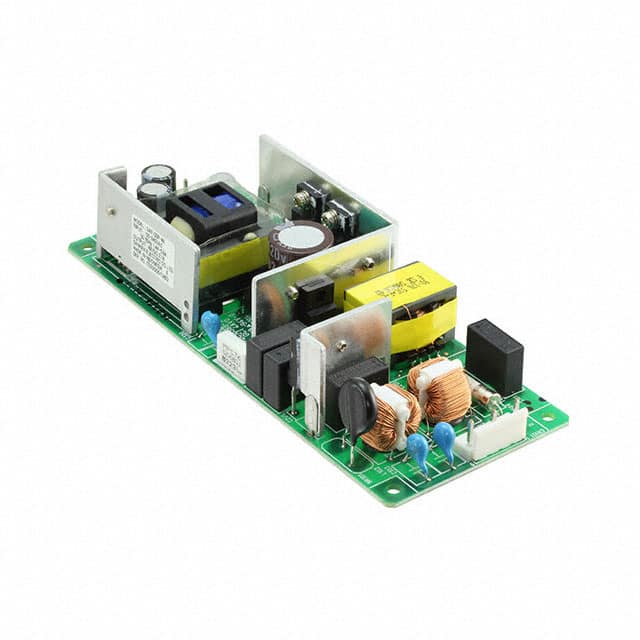

SWF100P-48 The Sanken SWF100P-48 is a 100W AC/DC converter with an open frame design and chassis mount. It provides 3kV isolation and features adjustable output with universal input.
Mfr Part #:

SWF100P-48

Mfr Name: Sanken
Sanken
The Sanken SWF100P-48 is a 100W AC/DC converter with an open frame design and chassis mount. It provides 3kV isolation and features adjustable output with universal input.
Stock on Request

SWF100P-48 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Type
Voltage
Width
View Similar Products (0)

SWF100P-48 Description

Short technical summary and product information.

The Sanken SWF100P-48 is an open frame AC/DC converter designed for commercial ITE applications. It delivers 100W of power with an output current of 2.1A and features a robust 3kV isolation voltage.



This converter offers a wide operating temperature range from -10°C to 70°C and boasts an efficiency of 89%. Key features include adjustable output and universal input capabilities, making it versatile for various power supply needs.



The unit is designed for chassis mounting, facilitating integration into different systems. Its dimensions are 155.0mm in length, 62.0mm in width, and 33.0mm in height. The SWF100P-48 is RoHS3 compliant and meets MSL 1 standards.

SWF100P-48 Quick Information

Product Type: AC DC Converter
Canonical Name: Sanken SWF100P-48 AC/DC Converter
Subcategory: Open Frame

SWF100P-48 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SWF100P-48 Features

  • 100W power output capability.
  • 2.1A maximum output current.
  • 3kV isolation voltage rating.
  • Open frame design for easy integration.
  • Chassis mount for secure installation.

SWF100P-48 Applications

  • Suitable for commercial ITE equipment power supplies.
  • Designed for 48V output industrial control systems.
  • Commonly used in telecommunications and networking hardware.
  • Provides reliable power conversion for embedded electronics.
  • Applicable for LED lighting and display power solutions.

SWF100P-48 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage of the SWF100P-48?

The output voltage is 48V.

What is the output current rating?

The output current is 2.1A.

What is the power rating of this converter?

The power rating is 100W.

What is the efficiency of the SWF100P-48?

The efficiency is 89%.

What is the operating temperature range?

The operating temperature range is -10°C to 70°C.

What mounting type does this converter use?

It uses chassis mount.
