| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Power Rating | |
| Type | |
| Voltage | |
| Width |

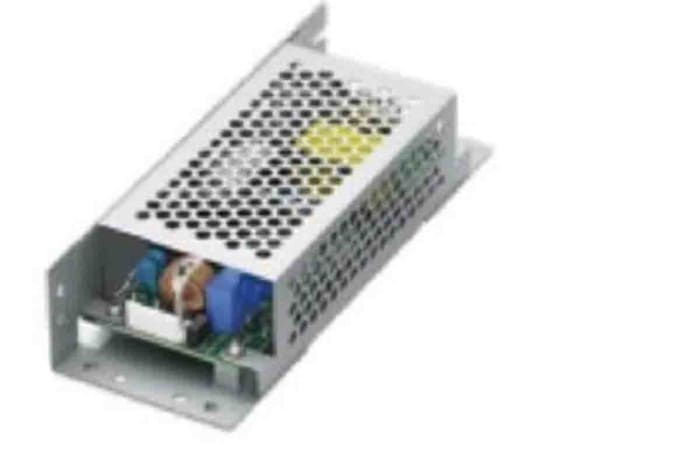

The Sanken Electric SWF100P-24-LC is an enclosed AC DC converter designed for reliable power conversion. It delivers a stable 24V dc output with a maximum current of 4.2A, providing a total power rating of 100W.
This converter features a universal input voltage range of 85 to 264V ac, making it suitable for global applications. Its efficiency is rated at 89%, contributing to energy savings. The unit is designed for chassis mounting, offering flexibility in system integration.
Key specifications include an isolation voltage of 3kV and an operating temperature range of -10°C to 70°C. It is approved by CE and cURus, indicating compliance with safety standards. The SWF100P-24-LC is suitable for ITE (Commercial) applications.
With its robust construction and versatile input capabilities, this AC DC converter is a practical choice for various electronic power supply needs.
The output voltage is 24V dc and the output current is 4.2A.
The power rating is 100W.
The input voltage range is 85 to 264V ac.
The operating temperature range is -10°C to 70°C.
The package type is enclosed and the mounting style is chassis mount.
The dimensions are 155.0mm length, 62.0mm width, and 33.0mm height.
It has CE and cURus approvals.
