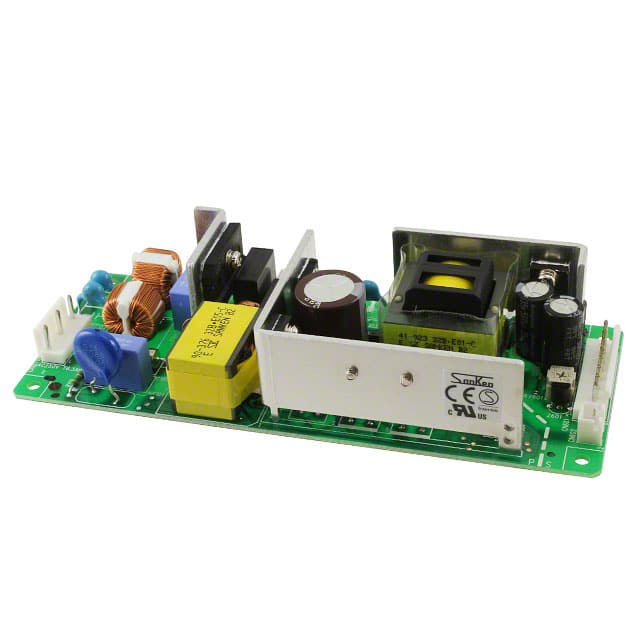

SWF100P-24-L
Sanken
The Sanken SWF100P-24-L is a 100W AC/DC converter with a 24V output, designed for open frame applications. It features chassis mount capability and universal input.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |
The Sanken SWF100P-24 is an AC/DC converter with a power rating of 100W and a current output of 4.2A. This open frame converter is designed for chassis mounting and offers features such as adjustable output and universal input. It operates efficiently with an 89% efficiency rating.
The dimensions of the SWF100P-24 are 155.0mm in length, 62.0mm in width, and 33.0mm in height. It is suitable for ITE (Commercial) applications and has an operating temperature range of -10°C to 70°C. The unit provides 3 kV of voltage isolation and is approved by CE and cURus agencies.
This converter is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1. The REACH status is unaffected.
24V DC.
Chassis mount with an open frame design.
-10°C to 70°C.
100W at 4.2A.
89% typical.
Yes, it features adjustable output and universal input.
CE and cURus approved.
