| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage |

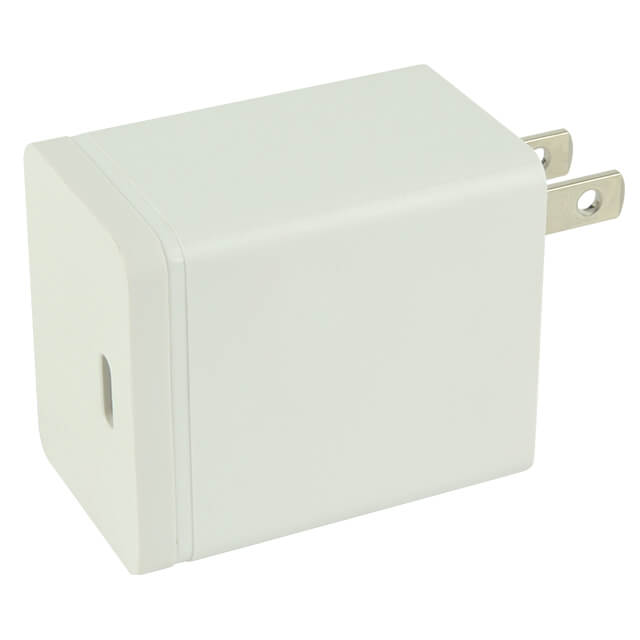

The CUI Inc. SWC27-T5912-NW is a versatile AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers up to 27W of power with selectable output voltages of 5V, 9V, or 12V, and features a convenient USB C receptacle for output connectivity. The adapter utilizes a NEMA 1-15P input connector and is designed with a fixed blade input type.
This adapter meets stringent efficiency requirements, achieving Level VI and CoC Tier 2 compliance. It operates within a temperature range of 0°C to 40°C and has a low no-load power consumption of 75mW maximum. The unit is housed in a compact wall mount form factor (Class II) with dimensions of 44.2mm x 33.2mm x 52.5mm.
Safety and regulatory approvals include cULus, FCC, and PSE, ensuring reliable performance in various regions, particularly North America. The RoHS status is RoHS3 Compliant, and it has an MSL rating of 1 (Unlimited).
0°C to 40°C
5V, 9V, and 12V
27W
Level VI and CoC Tier 2
NEMA 1-15P fixed blade
USB C Receptacle
44.2mm x 33.2mm x 52.5mm (1.74" x 1.31" x 2.07")
