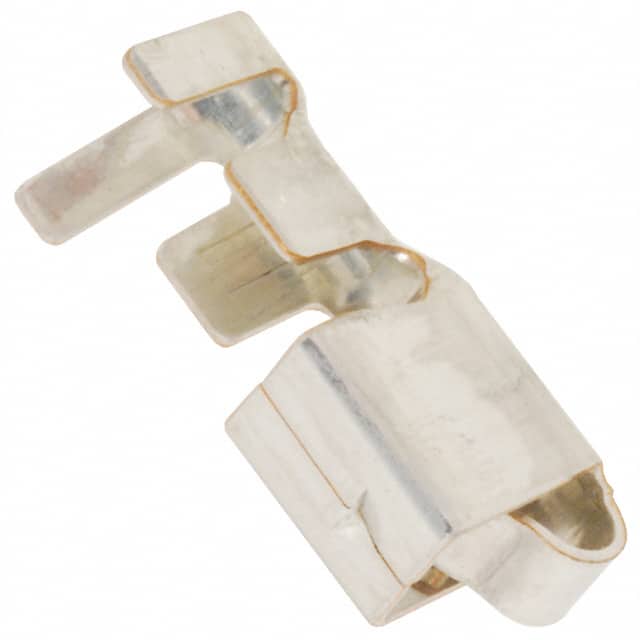

SVH-21T-P1.1 This is a crimp socket contact from JST's VH series, suitable for 18-22 AWG wire. It features a tin-plated phosphor bronze contact, rated for 10A and 250V.
Mfr Part #:

SVH-21T-P1.1

Available from 5 distributors
Mfr Name: Jst Manufacturing
Jst Manufacturing
This is a crimp socket contact from JST's VH series, suitable for 18-22 AWG wire. It features a tin-plated phosphor bronze contact, rated for 10A and 250V.
✓ Total Stock: 179,278 pcs
$ Price Range: $0.04 - $0.13

SVH-21T-P1.1 Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SVH-21T-P1.1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Material
Contact Termination
Current Rating
Housing Material
Insulation Resistance
Operating Temperature Range
Pin or Socket
Pitch
Tape & Reel
Voltage Rating
Wire Gauge
Withstanding Voltage
View Similar Products (0)

SVH-21T-P1.1 Description

Short technical summary and product information.

The SVH-21T-P1.1 is a crimp socket contact from JST's VH series, designed for 3.96mm pitch disconnectable connectors. It accepts wire sizes from AWG #22 to #16 (18-22 AWG) and uses a crimp termination for reliable connections. The contact is made of phosphor bronze with tin plating (reflow treatment) for good conductivity and corrosion resistance.



Electrical ratings include a maximum current of 10A (at AWG #16) and a maximum voltage of 250V AC/DC. The operating temperature range is -25°C to +85°C, including temperature rise. Contact resistance is 10 mΩ max initially and 20 mΩ max after environmental tests. Insulation resistance is 1000 MΩ min, and the withstanding voltage is 1500 VAC for 1 minute.



This socket contact is used with VH series header housings for a variety of signal, power supply, and output circuits in consumer electronic products. The standard packaging is 4500 pieces per reel. It is RoHS2 compliant.

SVH-21T-P1.1 Quick Information

Product Type: Crimp Socket Contact
Series: VH
Canonical Name: Crimp Socket Contact for VH Connector, 18-22 AWG, Tin Plated
Subcategory: Rectangular Connector Contacts

SVH-21T-P1.1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SVH-21T-P1.1 Estimated Pricing

Qty Low High
1+ $0.13 $0.13
10+ $0.07 $0.07
25+ $0.07 $0.07
250+ $0.06 $0.06
1,000+ $0.06 $0.06
2,500+ $0.04 $0.04
4,500+ $0.04 $0.04
9,000+ $0.04 $0.04

Estimated market price range - modelled values for guidance only, not live distributor offers.

SVH-21T-P1.1 Features

  • Crimp termination for 18-22 AWG wire.
  • Tin-plated phosphor bronze contact.
  • Rated for 10A maximum current.
  • Rated for 250V AC/DC voltage.
  • Operating temperature range -25°C to +85°C.

SVH-21T-P1.1 Applications

  • Used in consumer electronics power circuits.
  • Suitable for signal and output circuits.
  • Common in VH series connector housings.
  • Designed for 3.96mm pitch PCB connectors.

SVH-21T-P1.1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the wire gauge range for this contact?

The contact accepts 18-22 AWG wire (AWG #22 to #16).

What is the termination style?

Crimp termination.

What are the current and voltage ratings?

Maximum current rating is 10 A (AWG #16), maximum voltage rating is 250 V AC/DC.

What is the operating temperature range?

The operating temperature range is -25°C to +85°C, including temperature rise.

What is the contact material and finish?

Contact material is phosphor bronze with tin plating (reflow treatment).

Is this component RoHS compliant?

Yes, it is RoHS2 compliant.

What is the pitch of this connector contact?

The pitch is 3.96 mm.
