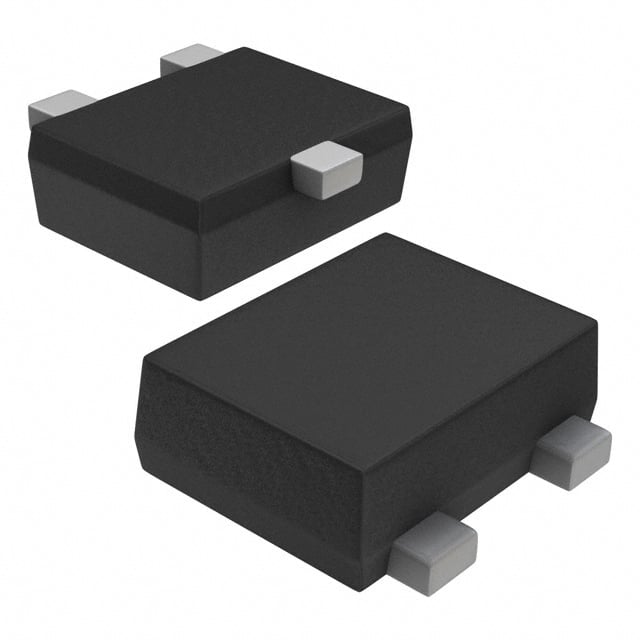

The SVC270-TL-E is a surface-mount FM varicap twin diode from On Semiconductor, featuring a common cathode configuration. It is designed for voltage-controlled tuning applications in RF circuits. The device offers a capacitance of 28.2 pF at 8V reverse bias and 1 MHz, with a capacitance ratio of 1.75 (C2/C8). The quality factor is 100 at 3V and 100 MHz, indicating low loss at RF frequencies. The maximum reverse voltage rating is 16 V. The diode is housed in an SC-70 (SOT-323) package with a 3-MCPH supplier device package designation, suitable for compact surface-mount designs. The operating junction temperature is rated up to 150°C.
