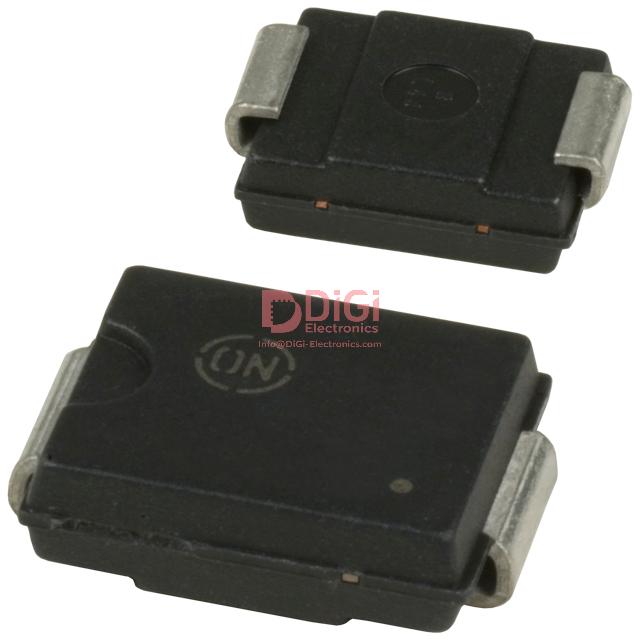

SURS8360T3G The SURS8360T3G is a rectifier diode from Semiconductor Components. It features a 600V reverse voltage rating and a 3A average rectified current.
Mfr Part #:

SURS8360T3G

Available from 1 distributors
Mfr Name: Semiconductor Components
Semiconductor Components
The SURS8360T3G is a rectifier diode from Semiconductor Components. It features a 600V reverse voltage rating and a 3A average rectified current.
✓ Total Stock: 1,721 pcs
$ Price Range: $0.25

SURS8360T3G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,721 pcs
On Request
1721 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SURS8360T3G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Style
Mounting Type
Reverse Recovery Time
Speed
Tape & Reel
View Similar Products (0)

SURS8360T3G Description

Short technical summary and product information.

The SURS8360T3G is a general-purpose rectifier diode manufactured by Semiconductor Components. It is designed for applications requiring a 600V reverse voltage and can handle an average rectified current of 3A.



Key electrical characteristics include a maximum forward voltage of 1.25V at 3A and a reverse leakage current of 10µA at 600V. The diode has a fast recovery time of 75ns, making it suitable for various switching applications.



This component is housed in a surface mount SMC (DO-214AB) package, facilitating integration into printed circuit boards. The operating junction temperature ranges from -65°C to 175°C, providing robustness in different thermal environments.

SURS8360T3G Quick Information

Product Type: Rectifier Diode
Series: SURS8360T3G
Canonical Name: SURS8360T3G Rectifier Diode
Subcategory: Rectifier

SURS8360T3G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SURS8360T3G Estimated Pricing

Qty Low High
1+ $0.25 $0.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

SURS8360T3G Features

  • 600V maximum reverse voltage rating.
  • 3A average rectified current capability.
  • 1.25V maximum forward voltage.
  • 75ns fast reverse recovery time.
  • Surface mount SMC package.

SURS8360T3G Applications

  • Used in switch-mode power supplies.
  • Ideal for freewheeling diode circuits.
  • Suitable for high-frequency rectification.
  • Used in snubber and clamping circuits.

SURS8360T3G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage of the SURS8360T3G?

600V.

What is the average rectified current rating?

3A.

What is the forward voltage drop at 3A?

1.25V at 3A.

What is the reverse recovery time?

75ns.

What package does the SURS8360T3G come in?

DO-214AB (SMC) surface mount package.

What is the operating junction temperature range?

-65°C to 175°C.

What is the speed classification?

Fast recovery with reverse recovery time ≤500ns.
