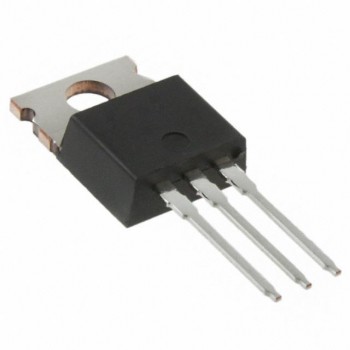

SUP60N06-12P-E3 The Vishay/Siliconix SUP60N06-12P-E3 is an N-Channel MOSFET with a 60V drain-source voltage and 60A continuous drain current. It features a low Rds On of 12mOhm at 30A, 10V.
Mfr Part #:

SUP60N06-12P-E3

Available from 1 distributors
Mfr Name: Siliconix
Siliconix
The Vishay/Siliconix SUP60N06-12P-E3 is an N-Channel MOSFET with a 60V drain-source voltage and 60A continuous drain current. It features a low Rds On of 12mOhm at 30A, 10V.
✓ Total Stock: 146 pcs
$ Price Range: $2.60

SUP60N06-12P-E3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
146 pcs
On Request
146 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SUP60N06-12P-E3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
FET Type
Failure Rate
Gate Charge
Input Capacitance
Lead Style
Mounting Type
Operating Temperature
Supplier Device Package
Technology
View Similar Products (0)

SUP60N06-12P-E3 Description

Short technical summary and product information.

The SUP60N06-12P-E3 from Vishay/Siliconix is an N-Channel MOSFET designed for power applications. It offers a robust 60V drain-to-source voltage (Vdss) and can handle a continuous drain current (Id) of 60A at 25°C.



Key electrical characteristics include a maximum on-resistance (Rds On) of 12mOhm when driven at 10V with a 30A drain current. The gate threshold voltage (Vgs(th)) is a maximum of 4.5V at 250µA. It also features a maximum gate charge (Qg) of 55nC at 10V and a maximum gate-to-source voltage (Vgs) of ±20V.



This MOSFET operates within a temperature range of -55°C to 150°C. It is housed in a TO-220AB package, suitable for through-hole mounting. The device belongs to the TrenchFET® series, indicating advanced power MOSFET technology for improved performance and efficiency.

SUP60N06-12P-E3 Quick Information

Product Type: MOSFET
Series: TrenchFET®
Canonical Name: Siliconix SUP60N06-12P-E3 N-Channel MOSFET
Subcategory: N-Channel

SUP60N06-12P-E3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SUP60N06-12P-E3 Estimated Pricing

Qty Low High
1+ $2.60 $2.60

Estimated market price range - modelled values for guidance only, not live distributor offers.

SUP60N06-12P-E3 Features

  • 60V drain-source voltage rating.
  • 60A continuous drain current capability.
  • Low 12mOhm maximum on-resistance.
  • N-Channel MOSFET technology.
  • TO-220AB package for through-hole mounting.

SUP60N06-12P-E3 Applications

  • Suitable for power switching circuits.
  • Ideal for high-current applications.
  • Used in power supply designs.
  • Applicable in motor control systems.

SUP60N06-12P-E3 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the maximum continuous drain current for the SUP60N06-12P-E3?

The maximum continuous drain current is 60A at 25°C (Tc).

What is the Rds On (Max) for the SUP60N06-12P-E3?

The maximum Rds On is 12mOhm at 30A drain current and 10V gate-source voltage.

What is the operating temperature range of the SUP60N06-12P-E3?

The operating temperature range is -55°C to 150°C.

What package type is the SUP60N06-12P-E3 supplied in?

The SUP60N06-12P-E3 is supplied in a TO-220AB package.
