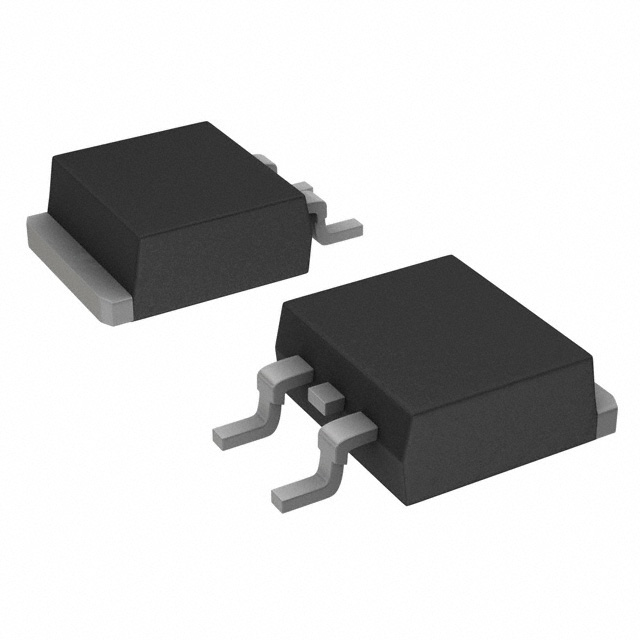

The Vishay Dale SUD45P03-09-GE3 is a P-Channel TrenchFET Power MOSFET designed for various power switching applications. It offers a drain-source voltage (Vds) of 30V and a continuous drain current (Id) of up to 45A at 25°C case temperature.
Key electrical characteristics include a low drain-source on-state resistance (Rds(on)) as low as 8.7mOhm at 20A and 10V gate-source voltage, and 15mOhm at 15A and 4.5V gate-source voltage. The gate threshold voltage (Vgs(th)) is rated at a maximum of 2.5V at 250µA. Dynamic characteristics include an input capacitance (Ciss) of 2700pF and a total gate charge (Qg) of up to 90nC.
This MOSFET operates within a junction temperature range of -55°C to 150°C. It features a junction-to-case thermal resistance of 3°C/W, allowing for efficient heat dissipation. The device is packaged in a TO-252-3, DPak (2 Leads + Tab), SC-63 surface mount package, suitable for high current load switching and DC/DC converters.
The SUD45P03-09-GE3 is compliant with RoHS Directive 2002/95/EC and is halogen-free according to IEC 61249-2-21 definition.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-30V.
TO-252-3 (DPak) surface mount.
-55°C to 150°C junction temperature.
Maximum 8.7 mOhm at VGS = -10V, ID = -20A.
-1V to -2.5V.
-45A at 25°C case temperature.
Yes, it is halogen-free.
