Mfr Part #:

STX-3000

Name: STX-3000
Brand: Kycon Inc.
SKU: STX-3000

Mfr Name: Kycon Inc.

Description:

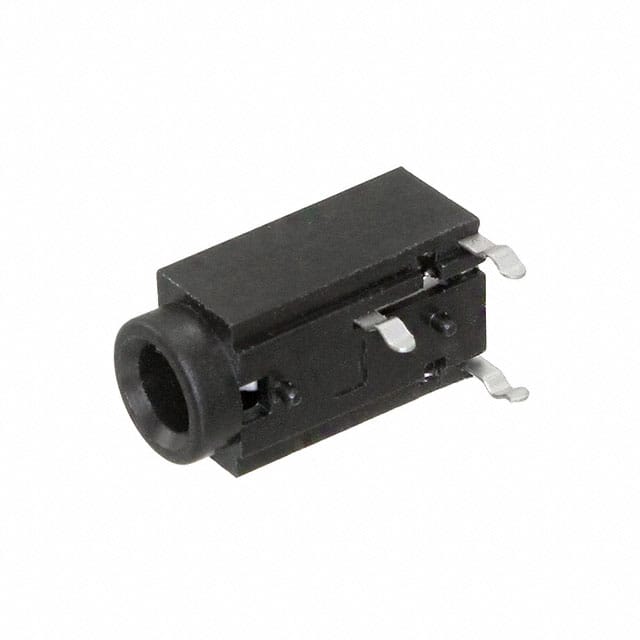

CONN JACK STEREO 3.5MM TH R/A

Stock on Request

STX-3000 Description

Short technical summary and product information.

CONN JACK STEREO 3.5MM TH R/A

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

STX-3100-3N

Kycon Inc.

CONN JACK STEREO 3.5MM PCB R/A

Category	Audio Connectors
Manufacturer Name	Kycon Inc.
Actual Diameter	0.142" (3.60mm)
Connector Type	Phone Jack
Features	Board Guide
Gender	Female
Industry Recognized Mating Diameter	3.50mm (0.141", 1/8", Mini Plug) - Headphone
Internal Switch(s)	Does Not Contain Switch
Mounting Type	Through Hole, Right Angle
Number of Positions	3 Conductors, 3 Contacts
Operating Temperature	-25°C ~ 80°C
Shielding	Unshielded
Signal Lines	Stereo (3 Conductor, TRS)
Termination	Kinked Pin
