| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Function | |
| Mounting Type | |
| Supplier Device Package | |
| Voltage | |
| Voltage Supply |

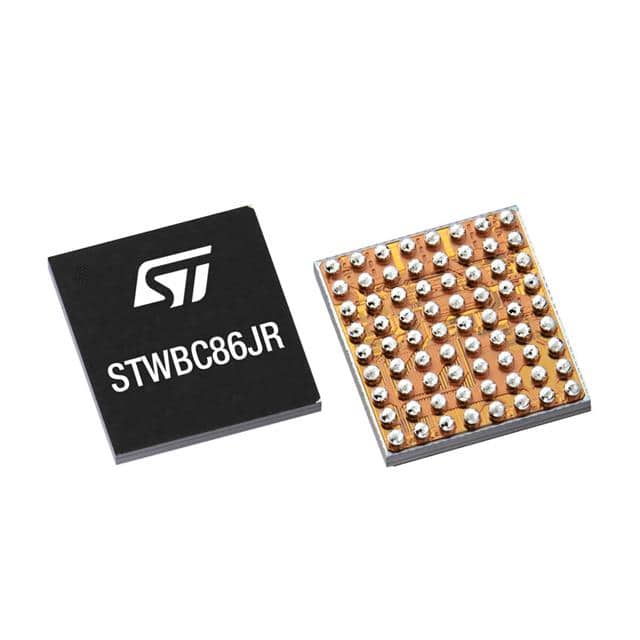

The STMicroelectronics STWBC86JR is a specialized Power Management IC (PMIC) designed for wireless power transmission applications. It functions as a transmitter, supporting the WPC Qi 1.2.4 standard.
This PMIC operates with a wide supply voltage range from 4.75V to 20V, offering flexibility in system design. It can deliver a maximum output power of 5W. The device is designed for surface mount installation and comes in a compact 72-UFBGA, WLCSP package with dimensions of 3.27mm x 3.67mm.
The operating temperature range for the STWBC86JR is from -40°C to 85°C, making it suitable for industrial environments. Its RoHS status is reported as RoHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The STWBC86JR operates with a supply voltage range of 4.75V to 20V.
The STWBC86JR has a maximum output power of 5W.
The STWBC86JR can operate within a temperature range of -40°C to 85°C.
The STWBC86JR functions as a Transmitter.
The STWBC86JR supports the WPC Qi 1.2.4 wireless power standard.
The STWBC86JR is available in a 72-WLCSP (3.27x3.67) package, also described as 72-UFBGA, WLCSP.
The STWBC86JR is designed for Surface Mount applications.
