The STW45NM50FD is an N-Channel MOSFET manufactured by STMicroelectronics. This component is designed for power applications, featuring a high drain-source voltage (Vdss) of 500V and a continuous drain current (Id) of 45A at 25°C.
Key electrical characteristics include a maximum on-resistance (Rds On) of 100mOhm at 22.5A and 10V gate-source voltage. The gate charge (Qg) is a maximum of 120nC at 10V, and input capacitance (Ciss) is 3600pF at 25V.
The MOSFET has a threshold voltage (Vgs(th)) of 5V at 250µA and a maximum gate-to-source voltage of ±30V. It can dissipate up to 417W of power at the case temperature.

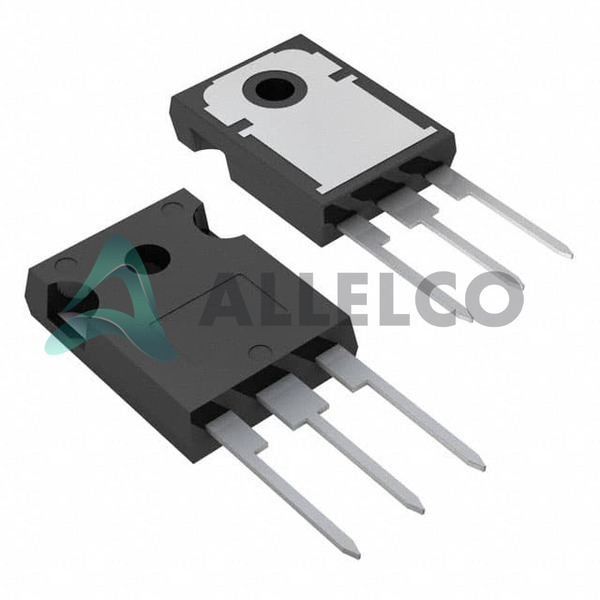

Packaged in a TO-247-3 through-hole configuration, the STW45NM50FD operates within a temperature range of -65°C to 150°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.27 | $2.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage (Vdss) is 500V.
The continuous drain current (Id) is 45A at 25°C.
The maximum on-resistance (Rds On) is 100mOhm at 22.5A and 10V.
The operating temperature range is -65°C to 150°C.
It is supplied in a TO-247-3 package.
