STTH8L02DDJFY-TR The STMicroelectronics STTH8L02DDJFY-TR is a diode array with a 200V rating and 3A current capacity. It features fast recovery and is designed for surface mounting.
Mfr Part #:

STTH8L02DDJFY-TR

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics STTH8L02DDJFY-TR is a diode array with a 200V rating and 3A current capacity. It features fast recovery and is designed for surface mounting.
✓ Total Stock: 3,000 pcs
$ Price Range: $1.25

STTH8L02DDJFY-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STTH8L02DDJFY-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Configuration
Mounting Type
Operating Temperature
Reverse Recovery Time (trr)
Speed
Supplier Device Package
Supplier Package
Technology
Voltage
View Similar Products (0)

STTH8L02DDJFY-TR Description

Short technical summary and product information.

The STMicroelectronics STTH8L02DDJFY-TR is a dual independent diode array designed for high-speed rectification applications. It offers a voltage rating of 200V and a continuous forward current of 3A at 200V, with a typical forward voltage of 1.1V at 8A.



This diode array utilizes Standard technology and boasts a fast recovery time of 40 ns, making it suitable for applications requiring quick switching. The operating temperature range is from -40°C to 175°C, ensuring reliability in demanding environments.

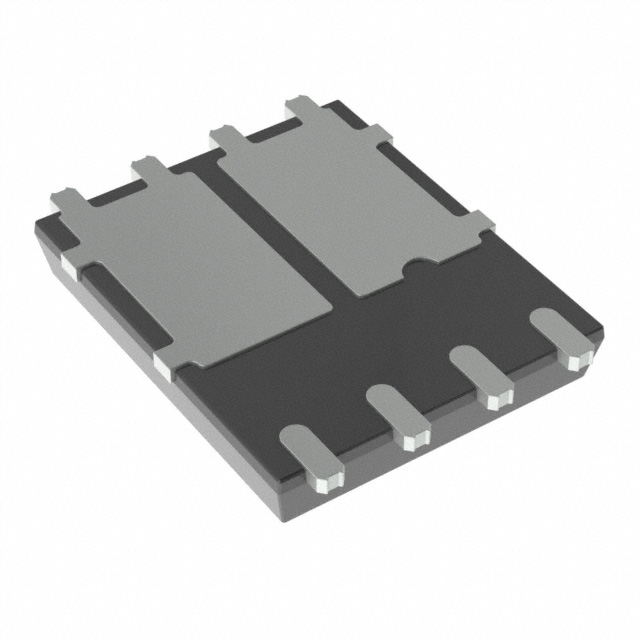

Packaged in an 8-PowerVDFN (PowerFlat™ 5x6 Dual) format, the STTH8L02DDJFY-TR is designed for surface mounting with wettable flank terminations. Its robust construction and specifications make it a versatile component for various power supply and signal processing circuits.

STTH8L02DDJFY-TR Quick Information

Product Type: Diode Array
Canonical Name: STMicroelectronics STTH8L02DDJFY-TR Diode Array
Subcategory: Rectifier Array

STTH8L02DDJFY-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STTH8L02DDJFY-TR Estimated Pricing

Qty Low High
1+ $1.25 $1.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

STTH8L02DDJFY-TR Features

  • Dual independent diode array configuration.
  • 200V reverse voltage rating.
  • 3A average forward current.
  • 40ns fast reverse recovery time.
  • Surface mountable 8-PowerVDFN package.

STTH8L02DDJFY-TR Applications

  • Suitable for high-speed rectification.
  • Ideal for power supply circuits.
  • Used in switching applications.
  • Effective in signal processing.

STTH8L02DDJFY-TR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the voltage rating for the STTH8L02DDJFY-TR?

The voltage rating is 200V.

What is the continuous forward current for this diode array?

The continuous forward current is 3A at 200V.

What is the typical forward voltage at 8A for the STTH8L02DDJFY-TR?

The typical forward voltage is 1.1V at 8A.

What is the reverse recovery time of the STTH8L02DDJFY-TR?

The reverse recovery time is 40 ns.

How is the STTH8L02DDJFY-TR mounted?

It is designed for surface mounting.

What is the operating temperature range for this diode array?

The operating temperature range is -40°C to 175°C.
