| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,650 pcs
|
5650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,804 pcs
|
1804 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | 1232+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Configuration | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Recovery Time (trr) | |
| SVHC Present | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

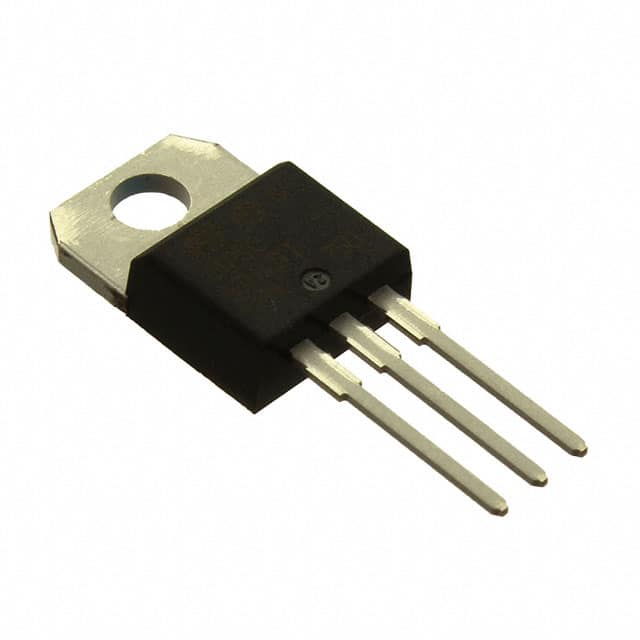

The STTH806TTI is a fast recovery diode array from STMicroelectronics, featuring a 1 pair series connection configuration. It is designed for applications requiring high efficiency and fast switching performance.
This device is rated for a maximum repetitive reverse voltage of 600V and an average rectified forward current of 8A. It offers a fast reverse recovery time of 30 ns, making it suitable for high-frequency switching circuits. The typical forward voltage is 3.6V at 8A.
The STTH806TTI is housed in a through-hole TO-220-3 package with an insulated TO-220AB variant, providing robust mechanical mounting and thermal performance. It can operate at a maximum junction temperature of 150°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.75 | $2.75 |
| 10+ | $1.35 | $1.35 |
| 100+ | $1.22 | $1.22 |
| 500+ | $1.06 | $1.06 |
| 1,000+ | $0.82 | $0.82 |
| 2,000+ | $0.78 | $0.78 |
| 5,000+ | $0.76 | $0.76 |
| 10,000+ | $0.73 | $0.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse recovery time is 30 ns.
The package is TO-220-3 with a TO-220AB insulated supplier device package.
The typical forward voltage is 3.6 V at 8 A.
The maximum operating temperature is 150°C.
The diode configuration is 1 pair series connection.
