| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
671,050 pcs
|
671050 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,090 pcs
|
2090 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request | |
|
83 pcs
|
83 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage | |
| Voltage - DC Reverse (Vr) (Max) |

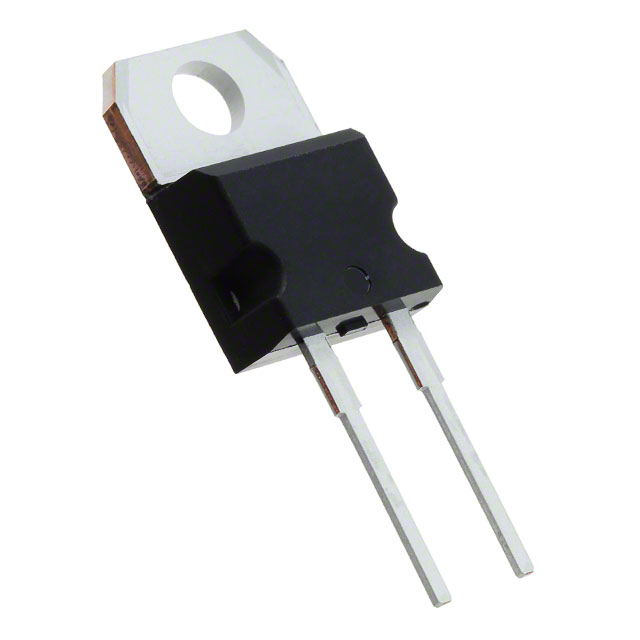

The STTH802D is a standard fast recovery rectifier diode designed for general purpose applications. It has a maximum DC reverse voltage of 200V and an average rectified current of 8A. The reverse recovery time is 30ns, making it suitable for high-frequency switching circuits. The forward voltage is typically 1.05V at 8A. The device is housed in a TO-220AC package with through-hole mounting, allowing for easy integration into power supply designs. The junction operating temperature is up to 175°C. The device is listed as RoHS3 Compliant and REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.47 | $1.47 |
| 10+ | $0.69 | $0.69 |
| 100+ | $0.61 | $0.61 |
| 500+ | $0.48 | $0.48 |
| 1,000+ | $0.44 | $0.44 |
| 2,000+ | $0.41 | $0.41 |
| 5,000+ | $0.36 | $0.36 |
| 10,000+ | $0.36 | $0.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
200V.
8A.
1.05V at 8A.
30ns.
TO-220-2 (TO-220AC).
