| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,187 pcs
|
5187 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Configuration | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Voltage |

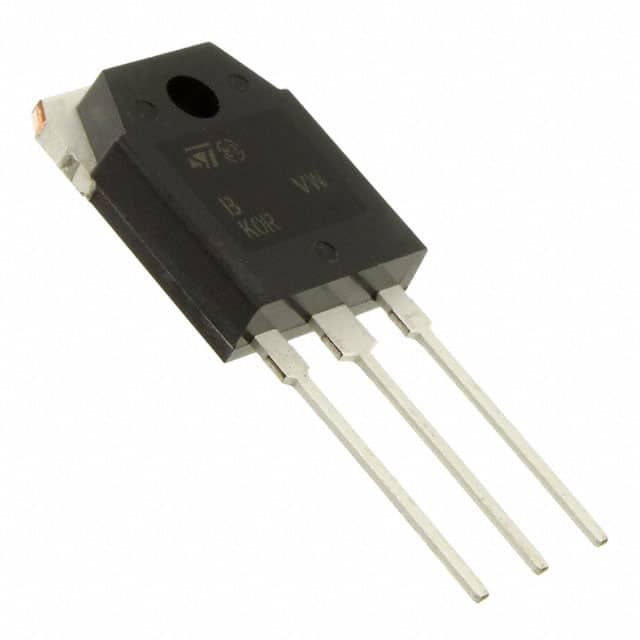

The STMicroelectronics STTH60AC06CP is a diode array designed for high-power applications. It offers a voltage rating of 600V and a current rating of 10A at 600V, with a maximum forward voltage of 1.75V at 30A.
This device features a fast recovery time of 40ns, contributing to its efficiency in switching applications. The technology is standard, and it operates at a maximum temperature of 175°C.
The diode array is configured as a single pair of common cathodes. It is packaged in a TO-3P-3, SC-65-3 case and is designed for through-hole mounting.
Environmental compliance includes RoHS3 compliance, MSL 1, and REACH unaffected status, though these are currently unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.25 | $1.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum repetitive reverse voltage is 600V.
The maximum average forward current is 10A at 600V.
The maximum forward voltage is 1.75V at 30A.
The reverse recovery time is 40ns.
The device is available in a TO-3P-3 (SC-65-3) through-hole package.
The maximum operating junction temperature is 175°C.
It is a 1 pair common cathode configuration.
