| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,820 pcs
|
8820 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
205 pcs
|
205 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Configuration | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

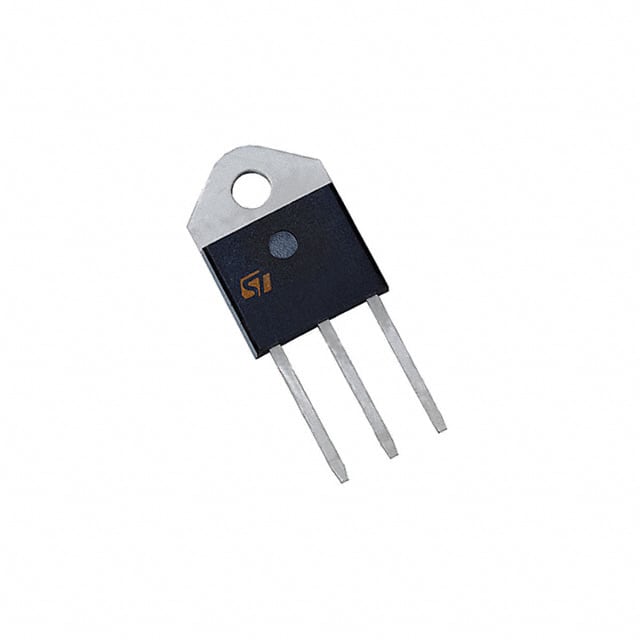

The STTH6002CPI is a high-performance diode array from STMicroelectronics, designed for general-purpose rectification and freewheeling applications. It integrates two standard silicon diodes in a common cathode configuration, each rated for 200V reverse voltage and 30A average forward current. The device exhibits a fast recovery time of 27ns, making it suitable for high-frequency switching circuits. With a forward voltage drop of 1.05V at 30A, it balances efficiency and thermal performance.
The diode array is housed in a TOP-3 insulated package (TOP-3I) with through-hole mounting, ensuring robust mechanical attachment and thermal dissipation. The maximum junction temperature is 175°C, allowing operation in demanding environments. This component is ideal for power supplies, motor drives, and other power conversion systems where fast switching and high current handling are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.89 | $7.89 |
| 10+ | $4.55 | $4.55 |
| 100+ | $3.81 | $3.81 |
| 600+ | $3.47 | $3.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1 Pair Common Cathode.
27 ns.
1.05 V at 30 A.
30 A at 200 V.
175°C.
TOP-3 Insulated (TOP-3I).
Through Hole.
