| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | 630 | On Request | On Request | |
|
2,800 pcs
|
2800 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Supplier Device Package | |
| Technology | |
| Voltage |

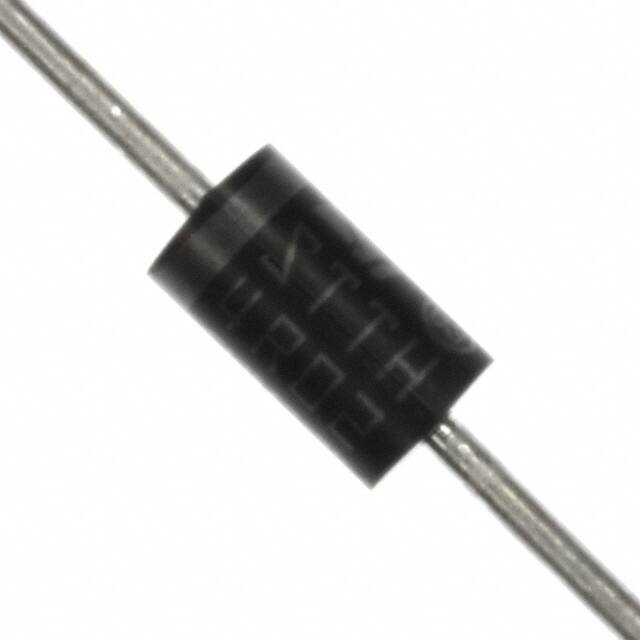

The STTH4R02 is a standard fast recovery rectifier diode manufactured by STMicroelectronics. It is rated for a maximum repetitive reverse voltage of 200V and an average rectified current of 4A. The diode exhibits a forward voltage of 1.05V at 4A and a reverse recovery time of 30ns, making it suitable for high-frequency switching applications.
The device is categorized as a fast recovery diode with a recovery time of less than 500ns at currents above 200mA. It is designed for through-hole mounting in a DO-201AB axial lead package. The operating junction temperature range extends up to 175°C.
This diode is commonly used in power supply rectification, freewheeling, and snubber circuits where fast switching and low losses are required. The package is compatible with standard PCB layouts for axial leaded components.
| Qty | Low | High |
|---|---|---|
| 3,000+ | $0.28 | $0.28 |
| 4,200+ | $0.27 | $0.27 |
| 6,000+ | $0.26 | $0.26 |
| 15,000+ | $0.23 | $0.23 |
| 30,000+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The STTH4R02 has a repetitive reverse voltage rating of 200V.
The average rectified current is 4A.
The forward voltage is 1.05V at 4A.
The reverse recovery time is 30ns.
The STTH4R02 is available in a DO-201AB through-hole package.
The maximum operating junction temperature is 175°C.
