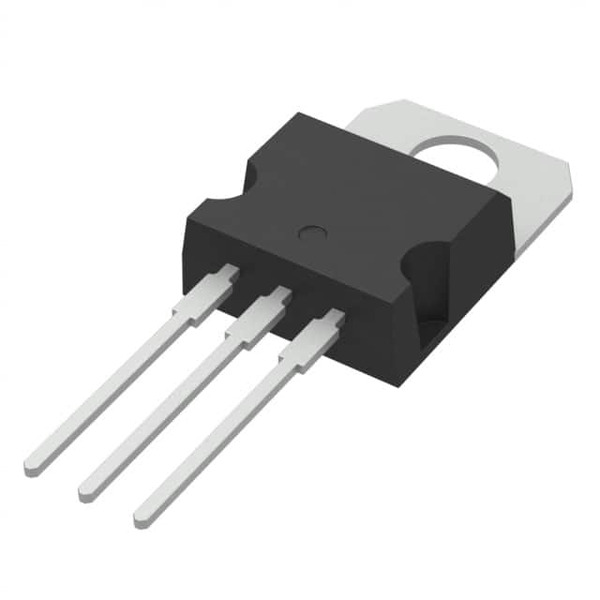

STTH16R04CFP The STMicroelectronics STTH16R04CFP is a general-purpose diode array with a common cathode configuration. It offers a 400V reverse voltage and 8A average rectified current per diode.
Mfr Part #:

STTH16R04CFP

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics STTH16R04CFP is a general-purpose diode array with a common cathode configuration. It offers a 400V reverse voltage and 8A average rectified current per diode.
✓ Total Stock: 2,070 pcs
$ Price Range: $1.25

STTH16R04CFP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,070 pcs
On Request
2070 pcs On Request 1 On Request On Request 1809+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STTH16R04CFP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Average Rectified Current
Current
Diode Configuration
Forward Voltage
Mounting Type
Operating Temperature
Reverse Recovery Time (trr)
Speed
Supplier Device Package
Technology
Voltage
View Similar Products (0)

STTH16R04CFP Description

Short technical summary and product information.

The STMicroelectronics STTH16R04CFP is a general-purpose diode array designed for high-speed rectification applications. It features two diodes arranged in a common cathode configuration, capable of handling up to 400V of reverse voltage and 8A of average rectified current per diode.



Key electrical specifications include a maximum forward voltage of 1.5V at 8A and a fast reverse recovery time of 50ns. The diode array also exhibits a low reverse leakage current of 10µA at 400V, ensuring reliable performance in high-voltage scenarios. It operates within a wide junction temperature range of -40°C to +175°C.



Packaged in a TO-220-3 Full Pack (TO-220FP) with through-hole mounting, the STTH16R04CFP is designed for easy integration and effective heat dissipation. Its robust construction and fast recovery characteristics make it suitable for use in power supplies, inverters, motor drives, and other high-speed rectification circuits in industrial, commercial, and consumer electronics.

STTH16R04CFP Quick Information

Product Type: Diode Array
Canonical Name: STMicroelectronics STTH16R04CFP Diode Array
Subcategory: Rectifier Diodes

STTH16R04CFP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STTH16R04CFP Estimated Pricing

Qty Low High
1+ $1.25 $1.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

STTH16R04CFP Features

  • 400V maximum reverse voltage rating.
  • 8A average rectified current per diode.
  • 50ns fast reverse recovery time.
  • Low 1.5V forward voltage drop.
  • TO-220FP through-hole package.

STTH16R04CFP Applications

  • Suitable for power supplies.
  • Used in inverter circuits.
  • Ideal for motor drives.
  • High-speed rectification applications.
  • Industrial and consumer electronics.

STTH16R04CFP FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage of the STTH16R04CFP?

400V.

What is the average rectified current per diode?

8A per diode.

What is the forward voltage drop at 8A?

1.5V at 8A.

What is the reverse recovery time?

50ns.

What package does the STTH16R04CFP come in?

TO-220-3 Full Pack (TO-220FP).

What is the diode configuration?

1 Pair Common Cathode.

What is the operating junction temperature range?

-40°C to 175°C.
