| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,360 pcs
|
2360 pcs | On Request | 1 | On Request | On Request | 98+ | On Request | On Request | |
|
26 pcs
|
26 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Configuration | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |
The STTA3006P is a fast recovery diode array from STMicroelectronics, containing two independent standard silicon diodes in a single through-hole package. It is designed for high-speed switching applications requiring fast recovery characteristics.
Key electrical specifications include a forward voltage of 1.75 V at 30 A, a reverse recovery time of 65 ns, and a peak forward surge current of 150 A at 480 V. The device can operate at a maximum junction temperature of 150°C.

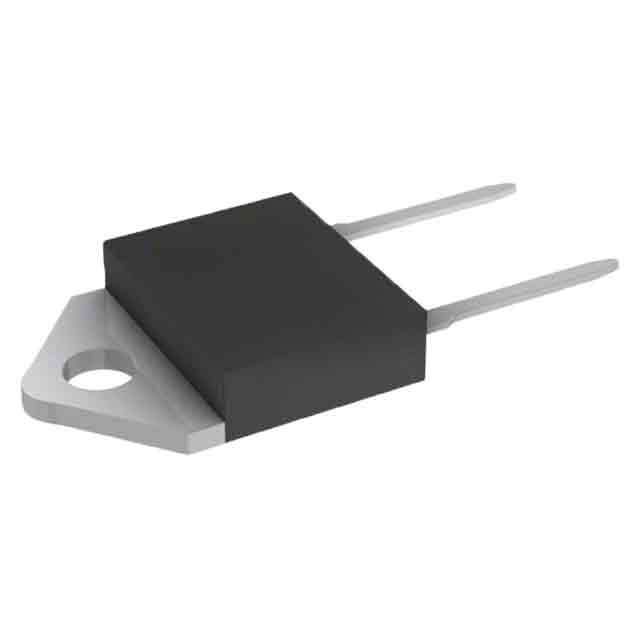

The diode array is housed in a SOD-93 package (SOD-93-2) and is through-hole mountable, suitable for robust assembly in power electronic circuits. The two independent diodes offer design flexibility for various rectifier and freewheeling configurations.
| Qty | Low | High |
|---|---|---|
| 300+ | $2.70 | $2.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The forward voltage is 1.75 V at 30 A.
The reverse recovery time is 65 ns.
The STTA3006P is available in a through-hole SOD-93 package (SOD-93-2).
The STTA3006P contains two independent diodes.
The maximum operating temperature is 150°C.
The peak forward surge current is 150 A at 480 V.
The STTA3006P uses standard silicon technology.
