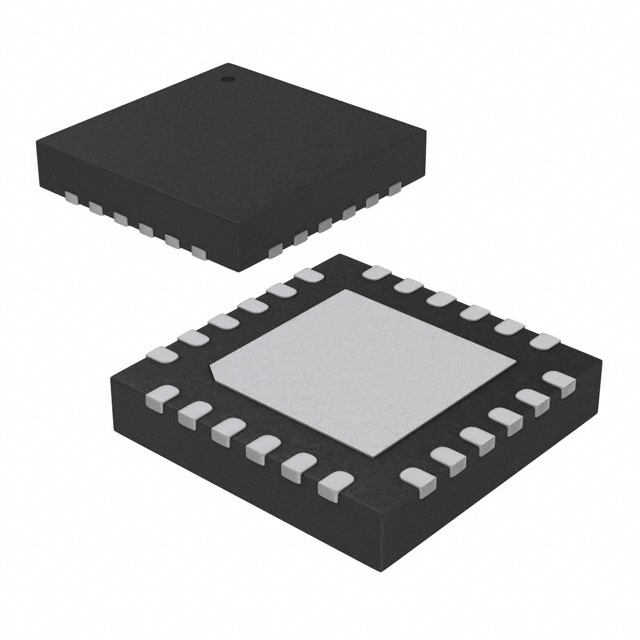

STSPIN820 The STMicroelectronics STSPIN820 is a bipolar motor driver IC designed for industrial applications. It operates from 7V to 45V and handles up to 1.5A.
Mfr Part #:

STSPIN820

Available from 6 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics STSPIN820 is a bipolar motor driver IC designed for industrial applications. It operates from 7V to 45V and handles up to 1.5A.
✓ Total Stock: 60,971 pcs
$ Price Range: $2.25

STSPIN820 Available from 6 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STSPIN820 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Function
Interface
Motor Type
Mounting Type
Operating Temperature
Output Configuration
SVHC Present
Step Resolution
Supplier Device Package
Supplier Package
Technology
Voltage
View Similar Products (0)

STSPIN820 Description

Short technical summary and product information.

The STMicroelectronics STSPIN820 is an integrated motor driver IC suitable for bipolar stepper motors. It operates within a voltage range of 7V to 45V and can deliver a current of 1.5A.



This device features a fully integrated control and power stage, utilizing Power MOSFET technology. It offers a step resolution from 1 to 1/256, providing precise motor control. The output configuration is a half bridge with four channels, and it interfaces via logic signals.



Designed for industrial applications, the STSPIN820 has an operating temperature range of -40°C to 150°C (TJ). It is supplied in a 24-TQFPN (4x4) package and is designed for surface mount installation.



The component is RoHS3 compliant and has an MSL rating of 1.

STSPIN820 Quick Information

Product Type: Motor Driver IC
Canonical Name: STSPIN820 Motor Driver IC
Subcategory: Integrated Circuits (ICs)

STSPIN820 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STSPIN820 Estimated Pricing

Qty Low High
1+ $2.25 $2.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

STSPIN820 Features

  • Integrated control and power stage.
  • Operates from 7V to 45V.
  • Handles up to 1.5A current.
  • Supports 1/256 step resolution.
  • Suitable for industrial applications.

STSPIN820 Applications

  • Ideal for bipolar stepper motors.
  • Used in industrial automation systems.
  • Enables precise motor positioning.
  • Suitable for variable speed control.

STSPIN820 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the STSPIN820?

The operating voltage range is 7V to 45V.

What is the maximum current the STSPIN820 can handle?

The STSPIN820 can handle a current of 1.5A.

What is the operating temperature range for this motor driver?

The operating temperature range is -40°C to 150°C (TJ).

What package type is the STSPIN820 supplied in?

The STSPIN820 is supplied in a 24-TQFPN exposed pad package.

What is the RoHS status of the STSPIN820?

The STSPIN820 is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the STSPIN820?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.
