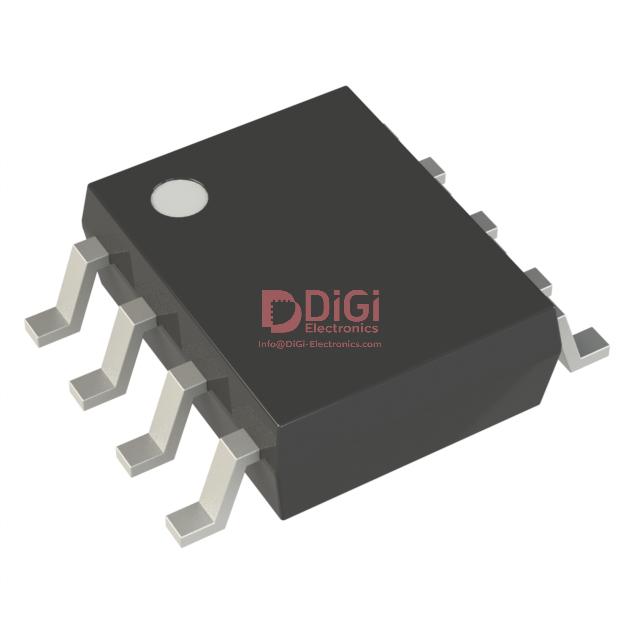

STS7NF60L The STMicroelectronics STS7NF60L is an N-Channel MOSFET with a 60V drain-source voltage and a continuous drain current of 7.5A. It features a low on-resistance and is suitable for surface mounting.
Mfr Part #:

STS7NF60L

Available from 1 distributors
Mfr Name: ST
ST
The STMicroelectronics STS7NF60L is an N-Channel MOSFET with a 60V drain-source voltage and a continuous drain current of 7.5A. It features a low on-resistance and is suitable for surface mounting.
✓ Total Stock: 129,143 pcs
$ Price Range: $2.81

STS7NF60L Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
129,143 pcs
On Request
129143 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STS7NF60L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Conflict Minerals
Gate Charge
Mounting Type
Power Dissipation
SVHC Present
View Similar Products (0)

STS7NF60L Description

Short technical summary and product information.

The STMicroelectronics STS7NF60L is an N-Channel MOSFET designed for various electronic applications. It offers a drain-to-source voltage (Vdss) of 60V and can handle a continuous drain current (Id) of 7.5A at 25°C. The MOSFET exhibits a maximum on-resistance (Rds On) of 19.5mOhm at 3.5A and 10V Vgs, with a gate threshold voltage (Vgs(th)) of 1V at 250µA.



Key electrical characteristics include a maximum gate charge (Qg) of 34nC at 4.5V Vgs and a maximum gate-source voltage (Vgs) of ±16V. The device has a power dissipation of 2.5W (Tc).



Packaged in an 8-SOIC surface mount configuration, the STS7NF60L is designed for efficient integration into printed circuit boards. Its specifications make it suitable for power switching and amplification circuits where reliable performance and compact size are required.

STS7NF60L Quick Information

Product Type: N-Channel MOSFET
Series: STripFET™ II
Canonical Name: STMicroelectronics STS7NF60L N-Channel MOSFET
Subcategory: N-Channel

STS7NF60L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STS7NF60L Estimated Pricing

Qty Low High
1+ $2.81 $2.81

Estimated market price range - modelled values for guidance only, not live distributor offers.

STS7NF60L Features

  • 60V drain-to-source voltage rating.
  • 7.5A continuous drain current.
  • Low 19.5mOhm maximum on-resistance.
  • 34nC maximum gate charge.
  • Surface mount 8-SOIC package.

STS7NF60L Applications

  • Suitable for power switching circuits.
  • Used in amplification applications.
  • Ideal for compact PCB designs.
  • Efficient power management solutions.

STS7NF60L FAQs

7 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage rating of STS7NF60L?

60V.

What is the continuous drain current rating?

7.5A at 25°C case temperature.

What is the on-resistance of STS7NF60L?

19.5mOhm maximum at 3.5A, 10V.

What is the gate threshold voltage?

1V maximum at 250µA.

What is the total gate charge?

34nC maximum at 4.5V.

What is the power dissipation?

2.5W at case temperature.

What package does STS7NF60L come in?

8-SOIC surface-mount package.
