STS4DNF60L The ST STS4DNF60L is an N-Channel MOSFET designed for various applications. It features a 60V Drain-Source Voltage and a 4A Continuous Drain Current.
Mfr Part #:

STS4DNF60L

Available from 3 distributors
Mfr Name: ST
ST
The ST STS4DNF60L is an N-Channel MOSFET designed for various applications. It features a 60V Drain-Source Voltage and a 4A Continuous Drain Current.
✓ Total Stock: 403,644 pcs
$ Price Range: $1.64

STS4DNF60L Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
401,778 pcs
On Request
401778 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,718 pcs
On Request
1718 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
148 pcs
On Request
148 pcs On Request 1 On Request On Request 16+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STS4DNF60L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Input Capacitance
Mounting Style
Number of Channels
Number of Pins
Operating Temperature
Power Dissipation
Power Dissipation (Max)
SVHC Present
View Similar Products (0)

STS4DNF60L Description

Short technical summary and product information.

The ST STS4DNF60L is an N-Channel MOSFET from STMicroelectronics, suitable for discrete semiconductor applications. This component operates with a Drain-Source Voltage (Vds) of 60V and can handle a Continuous Drain Current (Ids) of 4.00A. The Drain-to-Source On-Resistance (Rds) is specified at a low 0.045 Ohms, indicating efficient power handling.



This MOSFET has a Power Dissipation rating of 2.5W and a maximum Power Dissipation of 2000mW. The Threshold Voltage is 1.7V. It features a dual N-Channel configuration and comes in a SOIC-8 package, designed for surface mounting.



The operating temperature range for the STS4DNF60L is from -55°C to 150°C. It also includes specifications for Input Capacitance (Ciss) of 1030pF, Rise Time of 28ns, and Fall Time of 10ns, providing key electrical performance characteristics for design engineers.

STS4DNF60L Quick Information

Product Type: MOSFET
Canonical Name: ST STS4DNF60L N-Channel MOSFET
Subcategory: N-Channel MOSFET

STS4DNF60L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STS4DNF60L Estimated Pricing

Qty Low High
1+ $1.64 $1.64

Estimated market price range - modelled values for guidance only, not live distributor offers.

STS4DNF60L Features

  • 60V Drain-Source Voltage rating.
  • 4A Continuous Drain Current capability.
  • Low 0.045 Ohm Drain-Source On-Resistance.
  • SOIC-8 package for surface mounting.
  • Wide -55°C to 150°C operating temperature.

STS4DNF60L Applications

  • Suitable for power switching circuits.
  • Used in general purpose electronics.
  • Ideal for DC-DC converters.
  • Applicable in motor control systems.

STS4DNF60L FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage of the STS4DNF60L?

The maximum drain-source voltage is 60V.

What is the continuous drain current rating?

The continuous drain current is 4A.

What is the on-resistance of the STS4DNF60L?

The drain-source on-resistance is 0.045Ω.

What is the operating temperature range?

The operating temperature range is -55°C to 150°C.

What package is the STS4DNF60L available in?

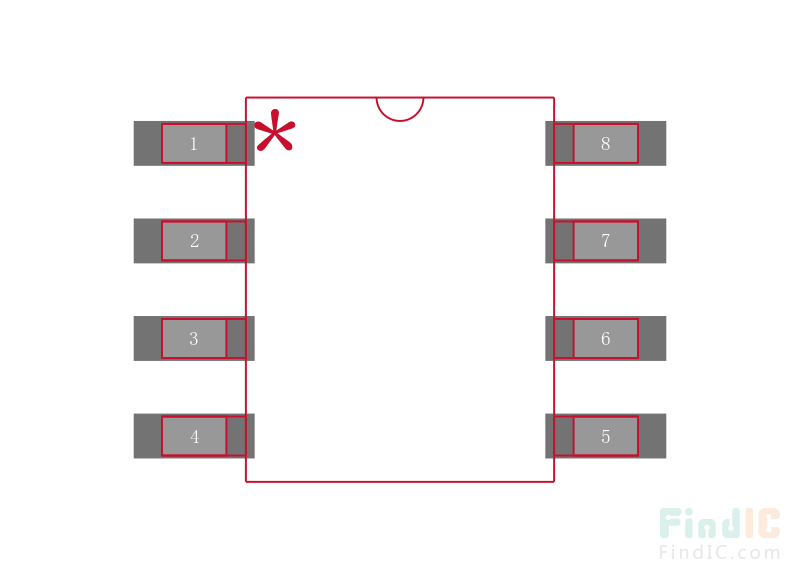

The STS4DNF60L is available in an SOIC-8 surface-mount package.

What is the gate-source breakdown voltage?

The gate-source breakdown voltage is ±15V.

How many channels does the STS4DNF60L have?

The STS4DNF60L has 2 channels.
