| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,988 pcs
|
3988 pcs | On Request | 1 | On Request | On Request | 98 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuation Force | |
| Actuator Length | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Timing | |
| Current Rating (Amps) | |
| Features | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

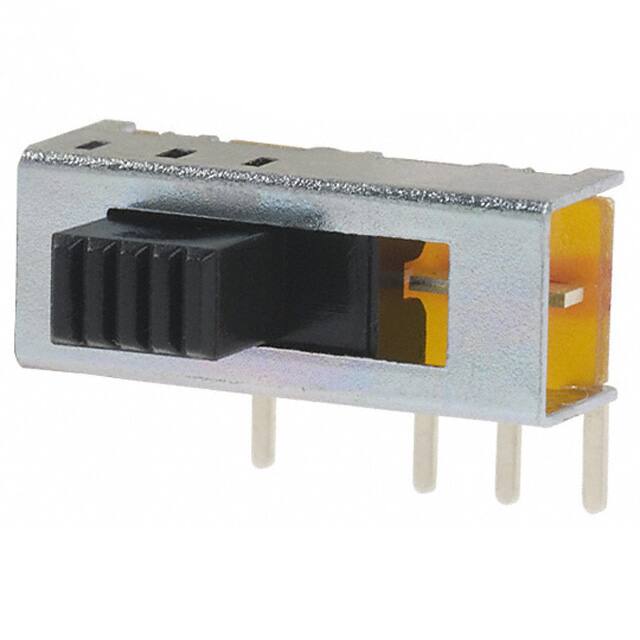

The TE Connectivity STS1300RA is a slide switch designed for various applications requiring reliable switching. It features a Single Pole Triple Throw (SP3T) circuit configuration, capable of handling 300mA at 125V AC.
Key electrical characteristics include a contact rating of 0.4 VA maximum and a minimum of 1 micro A at 20 mV AC/DC. The switch offers a mechanical life of up to 10,000 cycles and an actuation force ranging from 70 to 500 grams. The operating temperature range is -10°C to 60°C.
This slide switch is constructed with a copper alloy contact material and silver contact finish. The terminals are made of tin-lead over nickel-plated phosphor bronze, while the contacts are gold over nickel plated phosphor bronze. The case, actuator, plunger, and terminal board are made from UL 94V-0 glass-filled polyamide, and an optional silicon rubber actuator boot is available for sealing.
The STS1300RA is designed for through-hole mounting with a right-angle orientation. It utilizes a PC Pin termination style and is available in bulk packaging. The switch is sealed per IP 67 standards, offering protection against environmental factors.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The STS1300RA slide switch has an SP3T (Single Pole Triple Throw) circuit configuration.
The STS1300RA slide switch is rated for 300mA AC and 125V AC.
The operating temperature range for the STS1300RA slide switch is -10°C to 60°C.
The STS1300RA slide switch uses Through Hole, Right Angle mounting.
The STS1300RA slide switch is RoHS3 Compliant.
The mechanical life of the STS1300RA slide switch is up to 10,000 cycles.
