| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
91,400 pcs
|
91400 pcs | On Request | 1 | On Request | On Request | 12+ | On Request | On Request | |
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Duty Cycle | |
| Fault Protection | |
| Frequency | |
| Internal Switch(s) | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Output Isolation | |
| Power (Watts) | |
| Supplier Device Package | |
| Topology | |
| Voltage | |
| Voltage Supply |
The Sanken STR-W6052S is an offline switch integrated circuit designed for AC/DC converter applications. This component features a high breakdown voltage of 650V and a power rating of 60W, making it suitable for various power supply designs.
Key electrical specifications include a supply voltage range of 8.1V to 32V, a switching frequency between 60kHz and 74kHz, and a duty cycle of 71%. The device incorporates internal switches and provides isolated output. It also includes comprehensive fault protection, such as current limiting, overload, over-temperature, and over-voltage protection.
The STR-W6052S operates within a temperature range of -20°C to 115°C (TA). It is packaged in a TO-220-6 Full Pack, Formed Leads configuration, suitable for through-hole mounting. The component is supplied in tube packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The breakdown voltage is 650V.
The supply voltage range is 8.1V to 32V.
The operating temperature range is -20°C to 115°C.

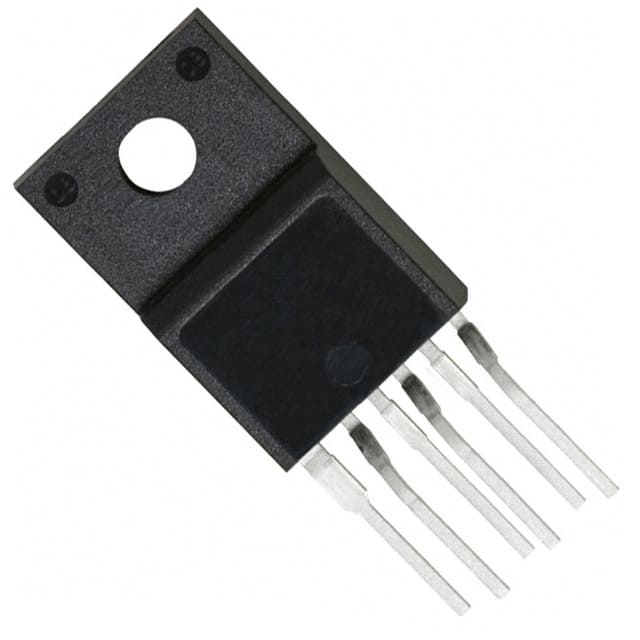

The STR-W6052S is available in a TO-220-6 Full Pack with formed leads for through-hole mounting.
The switching frequency is 60kHz to 74kHz.
The STR-W6052S includes current limiting, over-load, over-temperature, and over-voltage protection.
