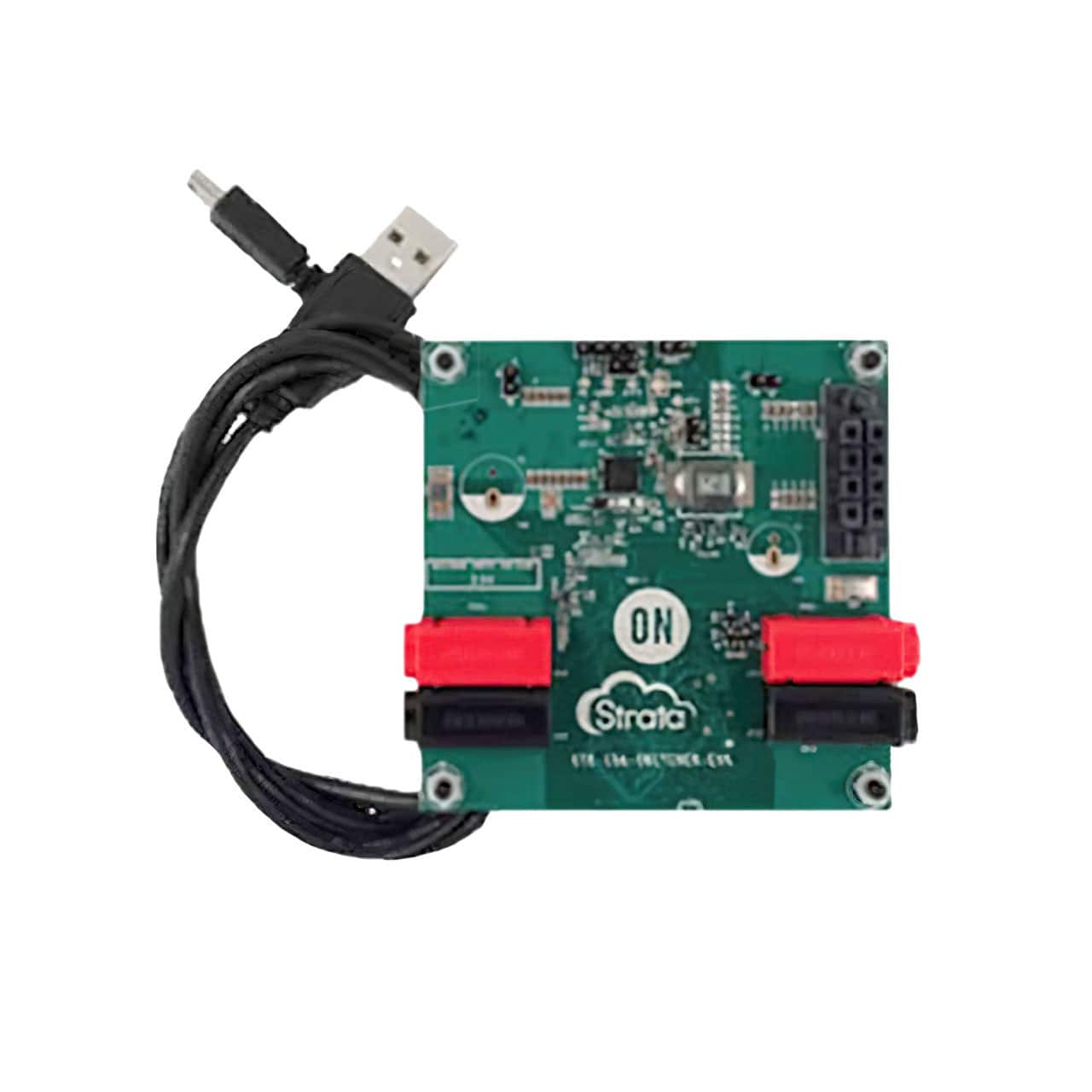

STR-NCP3232N-EVK Strata-enabled evaluation board for the NCP3232N 15A buck regulator. Features 4.5V to 21V input range and 500kHz switching frequency.
Mfr Part #:

STR-NCP3232N-EVK

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
Strata-enabled evaluation board for the NCP3232N 15A buck regulator. Features 4.5V to 21V input range and 500kHz switching frequency.
✓ Total Stock: 1 pcs
$ Price Range: $141.52

STR-NCP3232N-EVK Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STR-NCP3232N-EVK Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Board Type
Current
Frequency
Main Purpose
Outputs and Type
Regulator Topology
Supplied Contents
Utilized IC
Voltage
View Similar Products (0)

STR-NCP3232N-EVK Description

Short technical summary and product information.

The STR-NCP3232N-EVK is a fully populated evaluation board from On Semiconductor designed for the NCP3232N buck regulator IC. It is part of the Strata hardware evaluation ecosystem, enabling configurable control and measurement of key regulator functions via a simple UI.



Key electrical specifications include an input voltage range of 4.5V to 21V, output current capability of 15A, and a fixed switching frequency of 500kHz. The board uses a buck (step-down) topology and includes a single non-isolated output.



All necessary design collateral, including schematics, PCB layout, and test reports, are provided through the Strata interface, simplifying the evaluation process. The board is supplied with the NCP3232N IC and supporting components pre-installed.

STR-NCP3232N-EVK Quick Information

Product Type: Evaluation Board
Canonical Name: STR-NCP3232N-EVK Strata Enabled NCP3232N 15A Buck Regulator Evaluation Board
Subcategory: Buck Converter Evaluation Board

STR-NCP3232N-EVK Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STR-NCP3232N-EVK Estimated Pricing

Qty Low High
1+ $141.52 $141.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

STR-NCP3232N-EVK Features

  • Strata-enabled configurable evaluation platform.
  • Input voltage range 4.5V to 21V.
  • Output current up to 15A.
  • Switching frequency 500kHz.
  • Fully populated board with NCP3232N IC.

STR-NCP3232N-EVK Applications

  • Prototyping and testing 15A buck converters.
  • Evaluating NCP3232N regulator performance.
  • Used in point-of-load power supply designs.
  • Suitable for telecom and networking equipment.
  • Ideal for Strata ecosystem development.

STR-NCP3232N-EVK FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the STR-NCP3232N-EVK?

4.5V to 21V.

What is the output current capability?

15A.

What is the switching frequency?

500kHz.

What regulator topology is used?

Buck (step-down).

Which IC is utilized on this evaluation board?

NCP3232N.

Is the STR-NCP3232N-EVK RoHS compliant?

It is listed as RoHS3 Compliant, but this status is unverified from source documents.

What is the main purpose of this board?

DC/DC step-down regulator evaluation.
