| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board Type | |
| Current | |
| Main Purpose | |
| Outputs and Type | |
| Regulator Topology | |
| Supplied Contents | |
| Utilized IC | |
| Voltage |

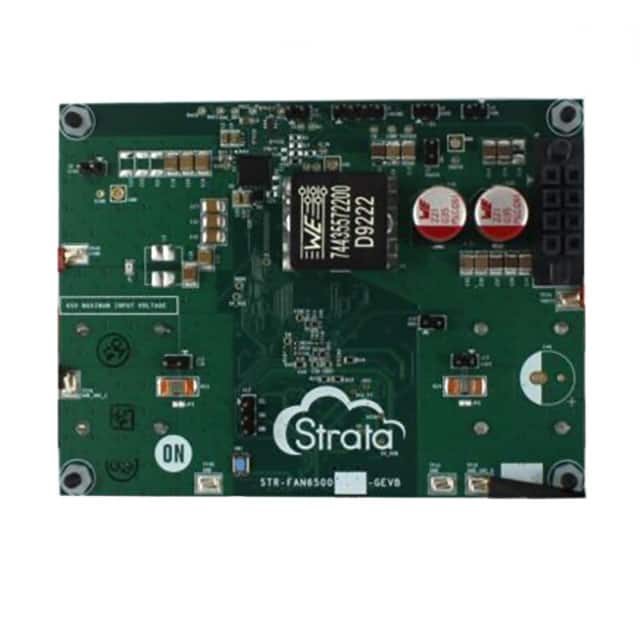

The STR-FAN65004C-GEVB is a fully populated evaluation board designed for evaluating the FAN65004C synchronous buck converter from ON Semiconductor. It is configured as a non-isolated DC/DC step-down (buck) regulator with a single 6A output.
The board accepts an input voltage from 4.5V to 65V, making it suitable for a wide range of industrial and automotive applications. The output current rating is 6A, with output voltage adjustable via external components as per the FAN65004C datasheet.
This evaluation board includes all necessary components for quick prototyping and testing. The supplied contents are the board only. Engineers can use it to verify the performance of the FAN65004C IC in step-down topologies.
| Qty | Low | High |
|---|---|---|
| 1+ | $117.32 | $117.32 |
| 6+ | $97.17 | $97.17 |
| 10+ | $104.13 | $104.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4.5V to 65V.
The output current rating is 6A.
It uses a buck (step-down) topology.
Yes, it is listed as RoHS3 Compliant.
The board utilizes the FAN65004C IC.
It has 1 non-isolated output.
It is designed for DC/DC step-down evaluation.
