| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,450 pcs
|
7450 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Duty Cycle | |
| Fault Protection | |
| Frequency | |
| Internal Switch(s) | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Output Isolation | |
| Power (Watts) | |
| Supplier Device Package | |
| Supplier Package | |
| Topology | |
| Voltage |

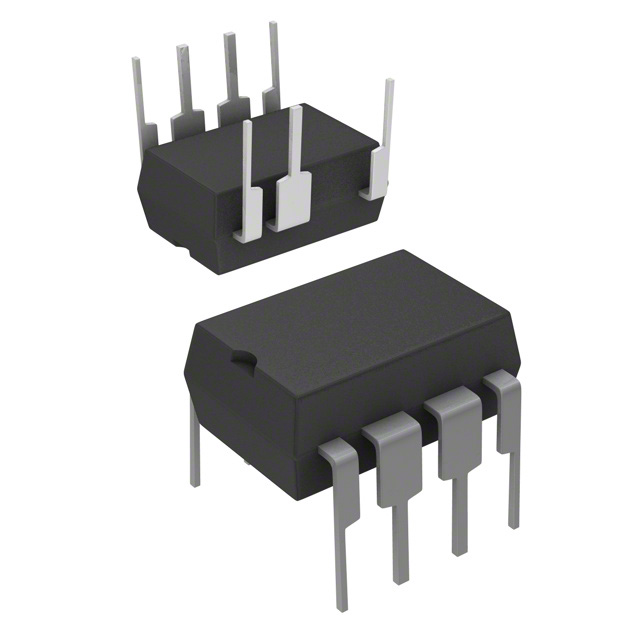

The Sanken STR-A6059H is an integrated circuit designed for AC to DC conversion using a flyback topology. This offline switch features a power rating of 30W and operates at a frequency of 100kHz.
With a wide input voltage range of 8.1V to 32V, the STR-A6059H is suitable for various power supply applications. It includes built-in fault protection mechanisms such as current limiting, overload protection, over-temperature protection, and over-voltage protection, enhancing system reliability.
The component is housed in an 8-DIP package with through-hole mounting, making it easy to integrate into circuit designs. The operating temperature range is -20°C to 125°C (TA), ensuring performance in diverse environmental conditions. The duty cycle is rated at 83% and the output is isolated.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8.1V to 32V.
8-DIP (0.300", 7.62mm), 7 leads, through hole.
-20°C to 125°C (TA).
100kHz.
Current limiting, over load, over temperature, over voltage.
Flyback.
30W.
