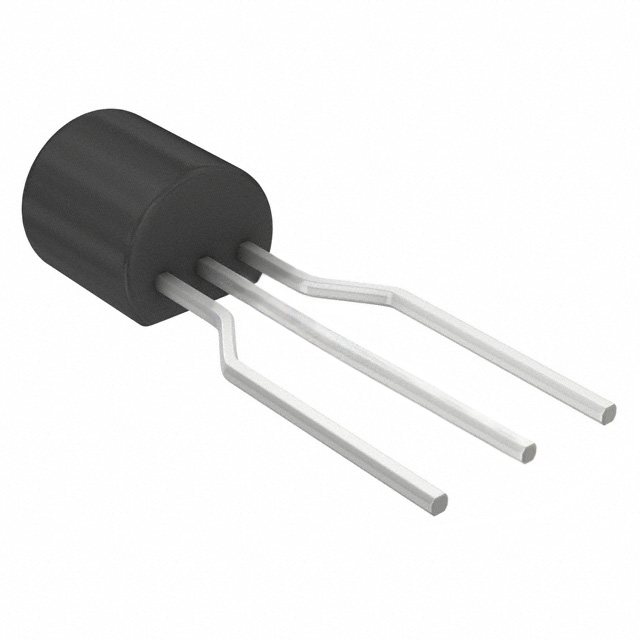

STQ1NC45R-AP The STQ1NC45R-AP is an N-Channel MOSFET from STMicroelectronics designed for switching applications. It offers a 450V drain-source voltage and a 500mA continuous current rating.
Mfr Part #:

STQ1NC45R-AP

Available from 3 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STQ1NC45R-AP is an N-Channel MOSFET from STMicroelectronics designed for switching applications. It offers a 450V drain-source voltage and a 500mA continuous current rating.
✓ Total Stock: 77,713 pcs
$ Price Range: $2.56

STQ1NC45R-AP Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
43,900 pcs
On Request
43900 pcs On Request 1 On Request On Request 728 On Request On Request
Fe Components ✓
Non-Authorised Inventory information
20,000 pcs
On Request
20000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
13,813 pcs
On Request
13813 pcs On Request 1 On Request On Request 16+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STQ1NC45R-AP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Supplier Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

STQ1NC45R-AP Description

Short technical summary and product information.

The STQ1NC45R-AP is an N-Channel Power MOSFET from STMicroelectronics, part of the SuperMESH™ series. It is designed for high voltage applications with a drain-source voltage (Vds) of 450V and a continuous drain current of 500mA (Tc=25°C).



Key electrical characteristics include a maximum on-resistance (Rds On) of 4.5 Ohms at 500mA and 10V gate-source voltage, and a gate charge (Qg) of 7nC at 10V. The device also features a gate-source voltage range of ±30V and a threshold voltage (Vgs(th)) of 3.7V at 250µA.



This MOSFET is suitable for switching applications such as switch mode low power supplies, low power CFLs, and low power battery chargers. It is packaged in a TO-92-3 (TO-226-3) through-hole package, with a maximum power dissipation of 3.1W (Tc=25°C) and an operating temperature range of -65°C to 150°C.



The SuperMESH™ series offers extremely high dv/dt capability and is 100% avalanche tested, making it a reliable choice for demanding applications.

STQ1NC45R-AP Quick Information

Product Type: MOSFET
Canonical Name: STQ1NC45R-AP N-Channel 450V Power MOSFET
Subcategory: N-Channel

STQ1NC45R-AP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STQ1NC45R-AP Estimated Pricing

Qty Low High
1+ $2.56 $2.56

Estimated market price range - modelled values for guidance only, not live distributor offers.

STQ1NC45R-AP Features

  • 450V drain-source voltage rating.
  • 500mA continuous drain current.
  • 4.5 Ohm maximum on-resistance.
  • TO-92 through-hole package.
  • High dv/dt capability.

STQ1NC45R-AP Applications

  • Switching mode low power SMPS
  • Low power compact fluorescent lamps
  • Low power battery charger circuits
  • High dv/idtolerant switching applications

STQ1NC45R-AP FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage for the STQ1NC45R-AP?

The maximum drain-source voltage (Vds) for the STQ1NC45R-AP is 450V.

What is the continuous drain current of the STQ1NC45R-AP?

The continuous drain current is 500mA at a case temperature of 25°C.

What is the maximum on-resistance (Rds On) for this MOSFET?

The maximum Rds On is 4.5 Ohms when the drain current is 500mA and the gate-source voltage is 10V.

What package type is the STQ1NC45R-AP supplied in?

The STQ1NC45R-AP is supplied in a TO-92-3 through-hole package.

What is the operating temperature range for the STQ1NC45R-AP?

The operating temperature range is -65°C to 150°C.

Is the STQ1NC45R-AP RoHS compliant?

Yes, the STQ1NC45R-AP is RoHS3 Compliant.
