STPTIC-82G2C5 The STMicroelectronics STPTIC-82G2C5 is an integrated tunable capacitor designed for adaptive RF tuning applications. It offers excellent RF performance, low power consumption, and high linearity.
Mfr Part #:

STPTIC-82G2C5

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics STPTIC-82G2C5 is an integrated tunable capacitor designed for adaptive RF tuning applications. It offers excellent RF performance, low power consumption, and high linearity.
✓ Total Stock: 1,200 pcs
$ Price Range: $44.15

STPTIC-82G2C5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
1,200 pcs
On Request
1200 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STPTIC-82G2C5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Frequency
Function
Mounting Type
RF Type
Supplier Device Package
Tape & Reel
View Similar Products (0)

STPTIC-82G2C5 Description

Short technical summary and product information.

The STMicroelectronics STPTIC-82G2C5 is an integrated tunable capacitor utilizing Parascan™ technology, a version of barium strontium titanate (BST). This component is intended for RF tunable applications in mobile phones and similar devices, offering significant improvements in radiated performance.



Key electrical specifications include a frequency range of 700 MHz to 2.7 GHz and a 5:1 tuning range controlled by a bias voltage from 1 to 24 V. It is designed for high power capability and high linearity, making it suitable for adaptive RF tuning.

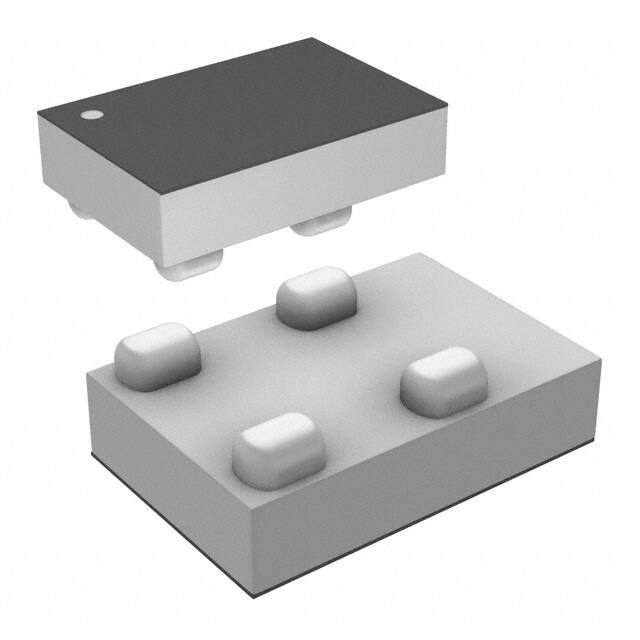

The device is packaged in a 4-WLCSP (4-UFBGA) format and features a surface mount type for easy integration into printed circuit boards. The STPTIC-82G2C5 is classified under EMI Filtering and Signal Conditioning, specifically for Smart Antenna Tuning.



This tunable capacitor is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. Its implementation in mobile phones helps make performance almost insensitive to the external environment.

STPTIC-82G2C5 Quick Information

Product Type: Tunable Capacitor
Series: STPTIC-82G2
Canonical Name: STPTIC-82G2C5 Tunable Capacitor
Subcategory: Smart Antenna Tuning

STPTIC-82G2C5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STPTIC-82G2C5 Estimated Pricing

Qty Low High
1+ $44.15 $44.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

STPTIC-82G2C5 Features

  • Offers excellent RF performance.
  • Features a 5:1 tuning range.
  • Designed for high linearity.
  • Operates from 1 to 24 V bias.
  • Surface mount 4-WLCSP package.

STPTIC-82G2C5 Applications

  • Ideal for adaptive RF tuning.
  • Used in mobile phone applications.
  • Suitable for GSM, LTE, W-CDMA.
  • Enhances radiated performance.

STPTIC-82G2C5 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating frequency range of the STPTIC-82G2C5?

The STPTIC-82G2C5 operates from 700 MHz to 2.7 GHz.

What is the tuning range of this tunable capacitor?

This tunable capacitor has a 5:1 tuning range.

What bias voltage is required for the STPTIC-82G2C5?

The STPTIC-82G2C5 is controlled through an extended bias voltage ranging from 1 to 24 V.

What package type is the STPTIC-82G2C5 supplied in?

The STPTIC-82G2C5 is supplied in a 4-WLCSP package.

How is the STPTIC-82G2C5 mounted?

The STPTIC-82G2C5 is a surface mount device.
